基于风险普查的邢台村镇地区房屋现状调查与震害预测

刘晓丹; 刘志辉; 魏艳旭

doi:10.11899/zzfy20240408

基于风险普查的邢台村镇地区房屋现状调查与震害预测

doi: 10.11899/zzfy20240408

河北省地震局, 石家庄 050021

基金项目: 河北省地震科技星火计划项目（DZ2021120300001）；河北省地震科技星火计划项目（DZ2021121400005）

详细信息

作者简介:
刘晓丹，女，生于1986年。高级工程师。主要从事防震减灾、结构抗震方面的研究工作。E-mail：liuxiaodan8686@163.com

通讯作者:
刘志辉，男，生于1971年。高级工程师。主要从事地震应急、地震风险评估、区划方面的研究工作。E-mail：55156916@qq.com

计量
- 文章访问数: 19
- HTML全文浏览量: 5
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-04
- 刊出日期: 2024-12-31

Buildings Status Investigation and Earthquake Damage Prediction in Xingtai Village Based on Risk Survey

Earthquake Administration of Hebei Province, Shijiazhuang 050021, China

摘要

摘要: 通过对河北省邢台地区18个区县、82处行政村的10425栋村镇房屋的建造方式、房屋结构、建造年代等相关数据进行实地调查，发现该地区村镇房屋的地震安全性普遍较低。在建造方式和结构方面，采用圈梁构造柱的砖混结构房屋占据了较大比例，但仍然存在大量抗震性能较差的简易结构。在实地调查的基础上，运用解析法对简易结构进行了更精细的易损性矩阵计算，得出4类建筑群体的易损性矩阵，为震害预测、经济损失计算以及河北省的震害研究提供了科学依据。
- 村镇房屋 /
- 易损性 /
- 震害矩阵
Abstract: A field investigation was conducted on 10,425 village houses across 18 districts and counties, and 82 administrative villages in the Xingtai region of Hebei Province. The study examined factors such as construction methods, house structures, and construction age. The results reveal that the seismic safety of rural houses in this area is generally low. In terms of construction methods and structures, brick-concrete houses with loop and column construction are predominant. However, a significant number of houses still feature simple structures with poor seismic performance. Based on the field survey, a refined vulnerability matrix for simple structures was developed using an analytical approach. Vulnerability matrices were also derived for four types of building groups. These matrices provide a scientific foundation for earthquake damage prediction, economic loss estimation, and damage assessment in Hebei Province.
- Village houses /
- Vulnerability /
- Earthquake damage matrix

HTML全文

图 1 邢台市村镇调查点分布情况

Figure 1. Distribution of village survey points in Xingtai city

下载: 全尺寸图片幻灯片

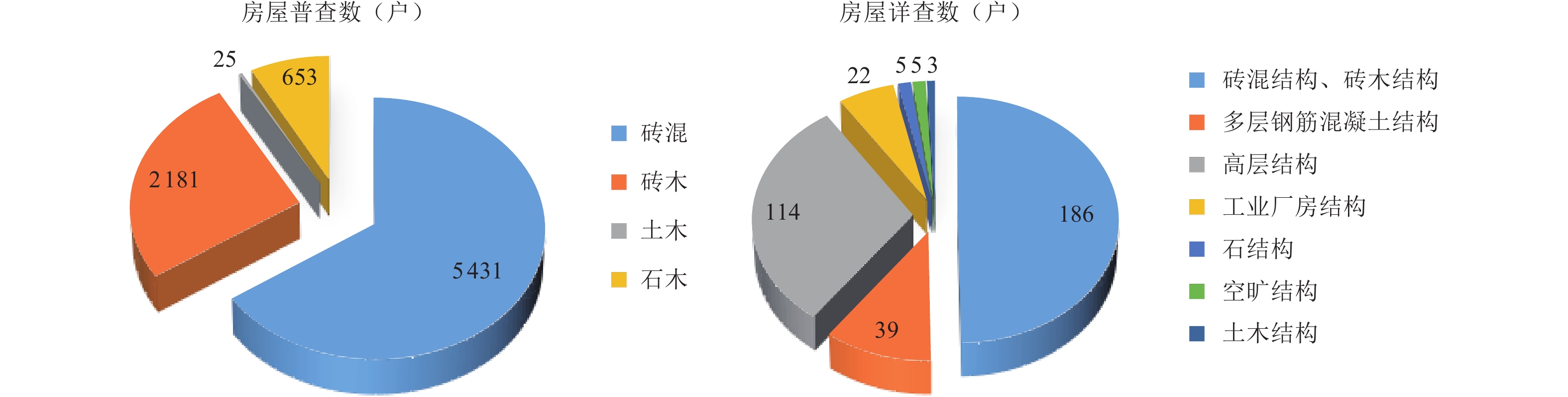

图 2 邢台各类建筑比例

Figure 2. Proportions histogram of various buildings in Xingtai city

下载: 全尺寸图片幻灯片

图 3 典型砖混结构

Figure 3. Typical brick-concrete structure

下载: 全尺寸图片幻灯片

图 4 典型砖木结构

Figure 4. Typical brick-wood structure

下载: 全尺寸图片幻灯片

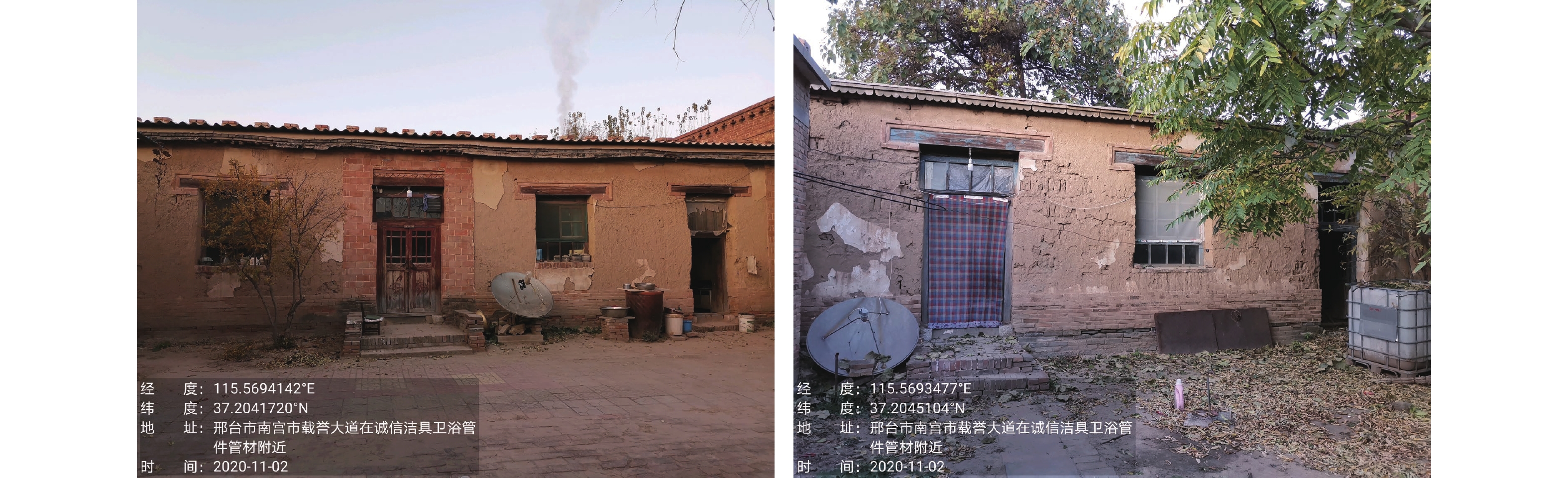

图 5 典型土木结构

Figure 5. Typical raw-soil structure

下载: 全尺寸图片幻灯片

图 6 典型石木结构

Figure 6. Typical stone-wood structure

下载: 全尺寸图片幻灯片

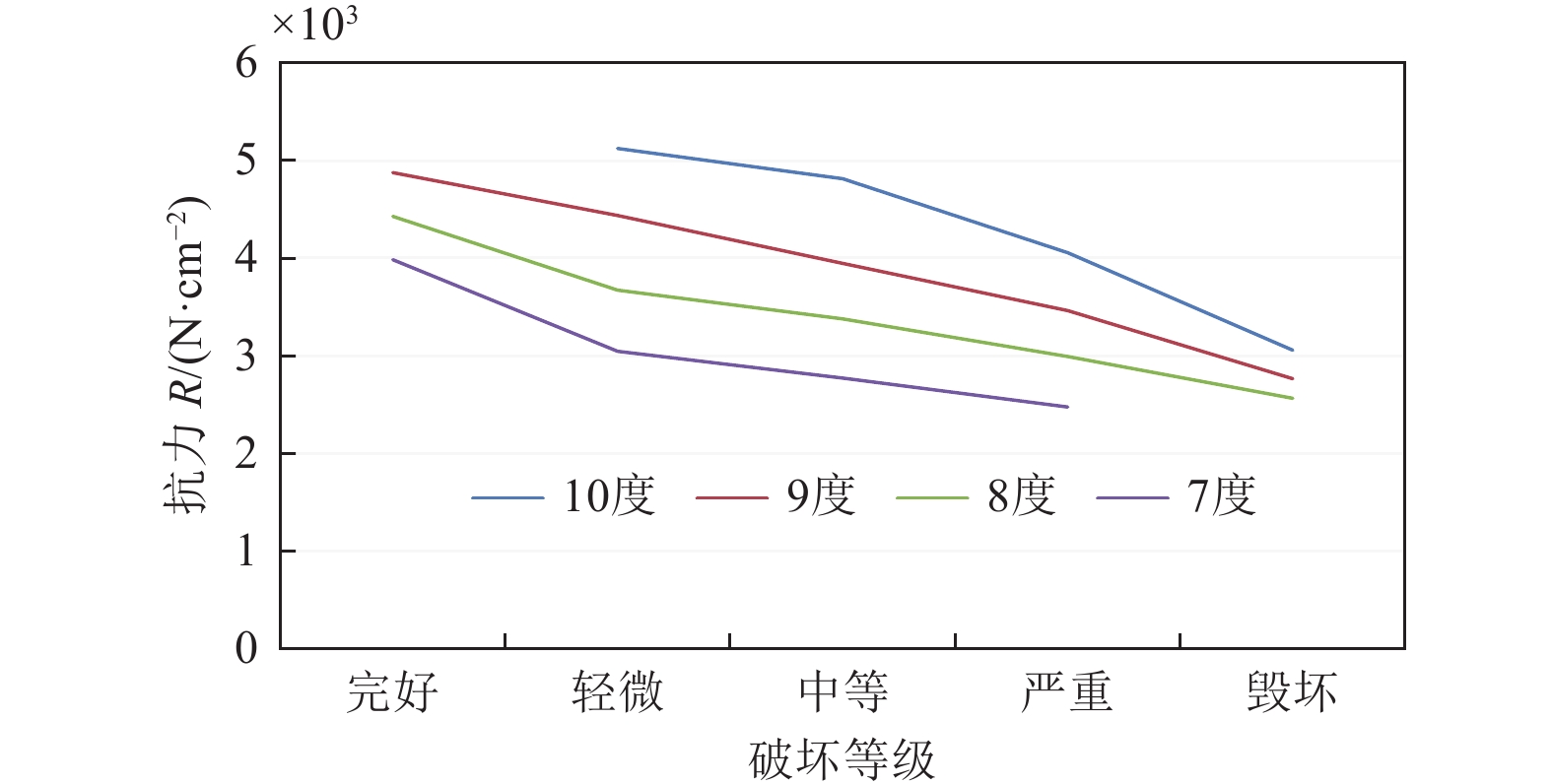

图 7 砖混结构破坏等级与抗力的关系

Figure 7. Relation between failure degree and resistance of brick-concrete structure

下载: 全尺寸图片幻灯片

图 8 邢台市县区经济损失分布情况

Figure 8. Statistical results of economic loss of Xingtai city

下载: 全尺寸图片幻灯片

表 1 邢台市村镇房屋结构比例

Table 1. Results of the survey of various structural types of rural buildings in Xingtai city

县	乡镇	户籍人口数量/人	房屋结构类型/户
县	乡镇	户籍人口数量/人	砖混	砖木	土木	石木
南宫	垂杨镇	600	60	135	5	0
临西	大刘庄乡	1756	10	290	0	0
广宗	东召乡	2127	190	210	0	0
清河	连庄镇	520	70	30	0	0
威县	固献乡	280	40	60	0	0
柏乡	柏乡镇	2173	360	40	0	0
南和	郝桥镇	3030	385	15	0	0
内丘	大孟村镇	2204	666	27	0	107
任泽	大屯乡	3149	312	88	0	0
临城	东镇镇	2265	400	130	0	70
信都	西黄村镇	4734	894	120	0	476
宁晋	苏家庄镇	7904	537	143	20	0
新河	荆家庄乡	2337	110	290	0	0
巨鹿	观寨乡	1667	305	95	0	0
隆尧	隆尧镇	3796	395	105	0	0
平乡	寻召乡	2299	70	330	0	0
沙河	柴关乡	3982	440	60	0	0
襄都区（邢台县）	豫让桥街道	1268	187	13	0	0

下载: 导出CSV

表 2 砖混结构震害矩阵

Table 2. Seismic damage matrix of masonry structure

破坏等级	占比/%
破坏等级	Ⅶ度	Ⅷ度	Ⅸ度	Ⅹ度
毁坏	0.00	9.91	29.18	52.37
严重破坏	6.62	7.45	6.90	10.83
中等破坏	6.70	5.46	7.42	8.64
轻微破坏	11.76	5.46	9.83	10.79
基本完好	74.92	71.72	46.67	17.37

下载: 导出CSV

表 3 砖木结构震害矩阵

Table 3. Seismic damage matrix of brick-wood structure

破坏等级	占比/%
破坏等级	Ⅶ度	Ⅷ度	Ⅸ度	Ⅹ度
毁坏	4.41	10.37	29.47	51.15
严重破坏	4.42	7.35	6.78	11.56
中等破坏	4.59	5.34	7.11	8.72
轻微破坏	11.22	5.34	9.98	11.11
基本完好	75.36	71.60	46.66	17.46

下载: 导出CSV

表 4 土木结构震害矩阵

Table 4. Seismic damage matrix of raw-soil structure

破坏等级	占比/%
破坏等级	Ⅶ度	Ⅷ度	Ⅸ度	Ⅹ度
毁坏	4.38	24.50	61.30	52.37
严重破坏	4.39	7.23	10.21	10.83
中等破坏	4.57	5.25	28.49	8.64
轻微破坏	9.61	5.26	0.00	10.79
基本完好	77.05	57.76	0.00	17.37

下载: 导出CSV

表 5 石木结构震害矩阵

Table 5. Seismic damage matrix of stone-wood structure

破坏等级	占比/%
破坏等级	Ⅶ度	Ⅷ度	Ⅸ度	Ⅹ度
毁坏	4.36	24.40	50.86	61.28
严重破坏	4.37	7.30	7.98	10.23
中等破坏	4.55	5.33	7.83	28.49
轻微破坏	9.58	5.34	0.00	0.00
基本完好	77.14	57.63	33.33	0.00

下载: 导出CSV

表 6 房屋损失比

Table 6. Housing loss ratio

房屋类型	房屋损失比/%
房屋类型	基本完好	轻微破坏	中等破坏	严重破坏	毁坏
高层建筑	3	11	31	73	91
框架结构	3	11	31	73	91
砖混结构	3	11	28	71	86
砖木结构	2	8	40	50	90
土木结构	3	6	44	45	94
石木结构	3	6	44	45	98

下载: 导出CSV

表 7 房屋重置单价

Table 7. Rebuilding price for housing replacement

项目	高层建筑	框架结构	砖混结构	砖木结构	土木结构	石木结构
重置单价/元	2129	2291	630	520	440	370

下载: 导出CSV
