Research on Frequency Domain Analysis Method Based on Equivalent Linearization for a Base-isolated Nuclear Power Plant
-
摘要: 在核电构筑物土-结构相互作用（SSI）分析中常用的方法是子结构法，这是由于其采用半解析法地基模拟技术，具有求解速度快、分析系统频率稳定的优势。因此，可在隔震核电厂房楼层反应谱计算中采用子结构法。因隔震支座具有明显的非线性特征，而子结构法基于叠加原理，在求解非线性问题时具有局限性，为了能够采用子结构法求解隔震核电厂房地震响应问题，基于等效线性化理念，在子结构法中实现隔震支座非线性行为模拟，并用SAP 2000软件验证本方法的可行性。将该方法应用于不同地基参数下隔震厂房反应谱计算，将得到的反应谱与采用隔震支座等效刚度计算结果进行对比。研究结果表明，在子结构法中应用等效线性化方法得到的隔震支座滞回曲线与采用SAP2000软件得到的滞回曲线基本一致，证明该方法是可行的；与采用等效刚度计算结果相比，采用迭代收敛刚度计算出的零周期加速度变化较小，主频略降低，峰值略有提高；由于隔震系统卓越频率与场地卓越频率并不接近，因此隔震结构楼层反应谱对地基参数的变化并不敏感。Abstract: Sub-structuring method is generally used in the soil-structure interaction (SSI) analysis for nuclear structures due to that such method is of the semi-analytic foundation simulation technique, the high calculation efficiency and constant damping of the whole analysis system. Therefore, the sub-structuring method can be adopted in SSI analysis for base-isolated buildings. However, the sub-structuring method has limitations to solve base-isolation problem because it bases on the superposition theory while the isolation bearing has significant non-linear characteristic. To solve this problem, we simulate the nonlinear behavior of the isolation bearing based on the concept of equivalent linearization in sub-structuring method and verify its feasibility by using SAP2000. In this paper, the method was applied to the in-structure response spectrum (ISRS) calculation of a base-isolated nuclear building under different site conditions, and the results were compared with those from the calculation using the equivalent stiffness of bi-linear constitutive model of the bearing. Our results show that the hysteresis curve of the isolation bearing obtained by the sub-structuring method is basically consistent with that from the nonlinear calculation in SAP2000, which proves that the method is reasonable and feasible. Compared with the ISRS obtained by using the equivalent stiffness, the zero-period acceleration of the ISRS obtained by using the convergent stiffness do not change too much, and the dominant frequencies decreased with slight increase of the peak acceleration. The ISRS of the base-isolated structure is not sensitive to the change of the site conditions since the predominant frequency of the isolation system is not close to the predominant frequencies of the sites.
-

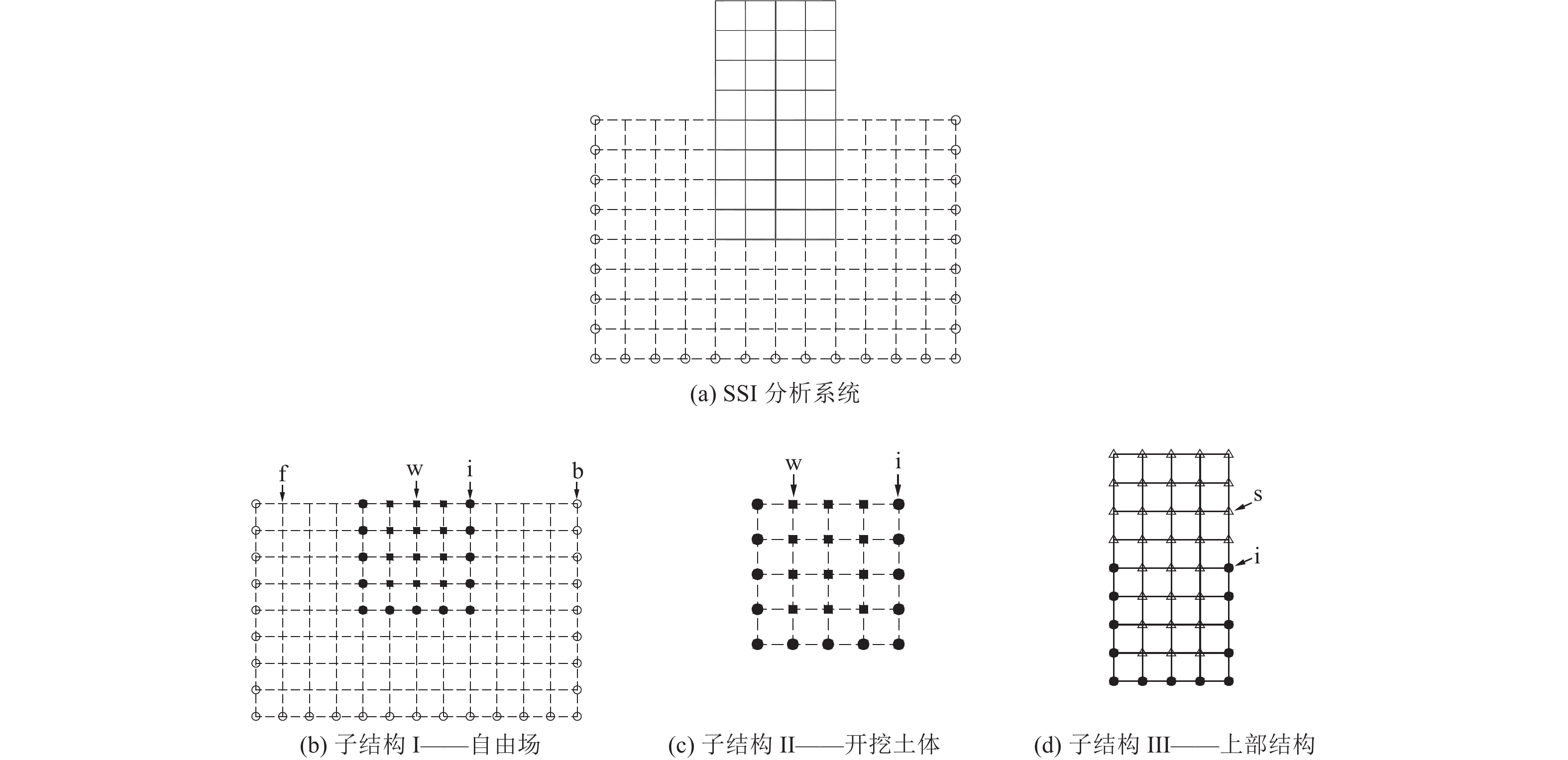

图 1 子结构法SSI分析系统示意
Figure 1. Schematic diagram of SSI analysis system in sub-structuring method

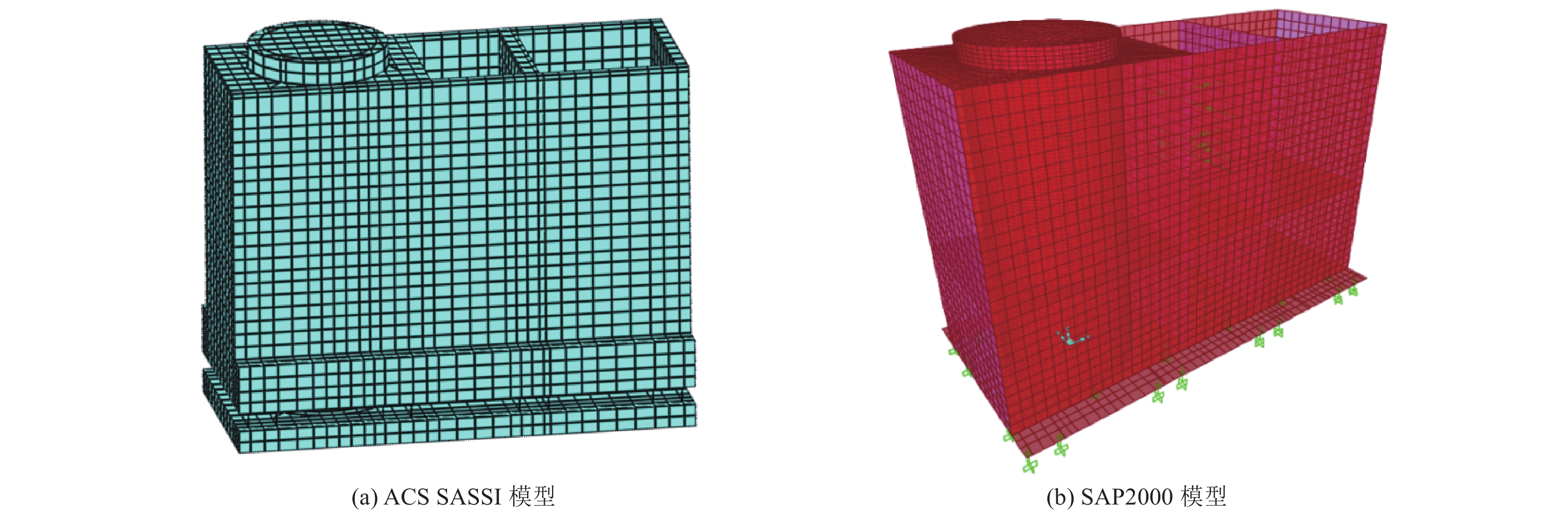

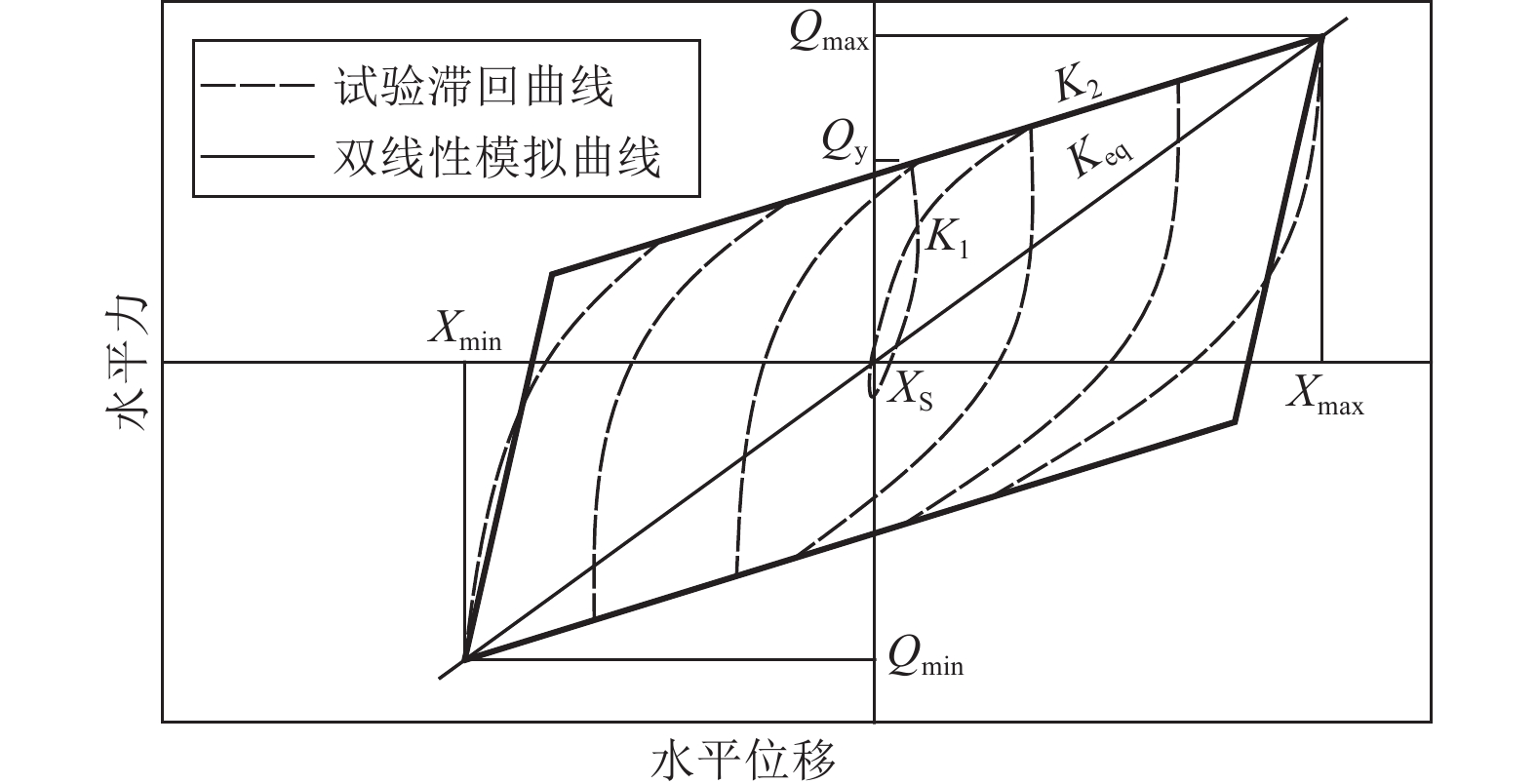

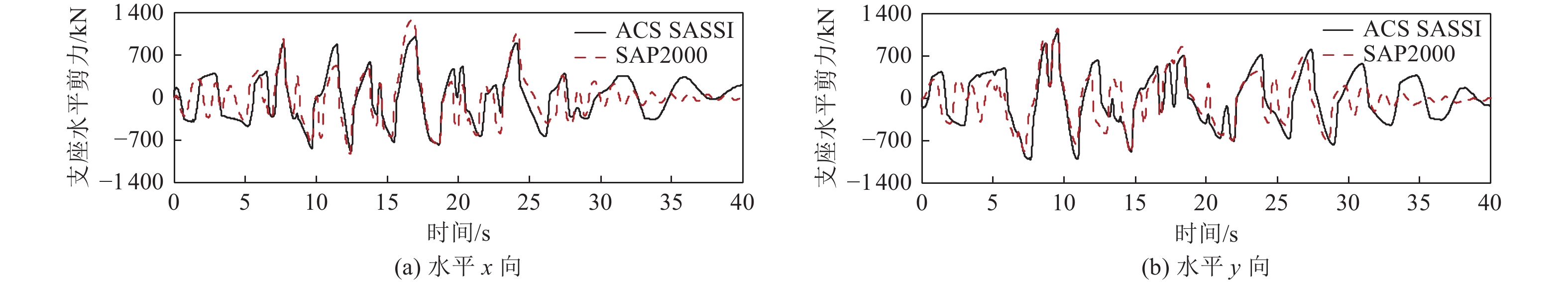

图 4 ACS SASSI与SAP2000软件得到的相同位置支座剪力时程响应对比
Figure 4. Comparison of shear force time history response of the bearings in the same position between ACS SASSI and SAP2000

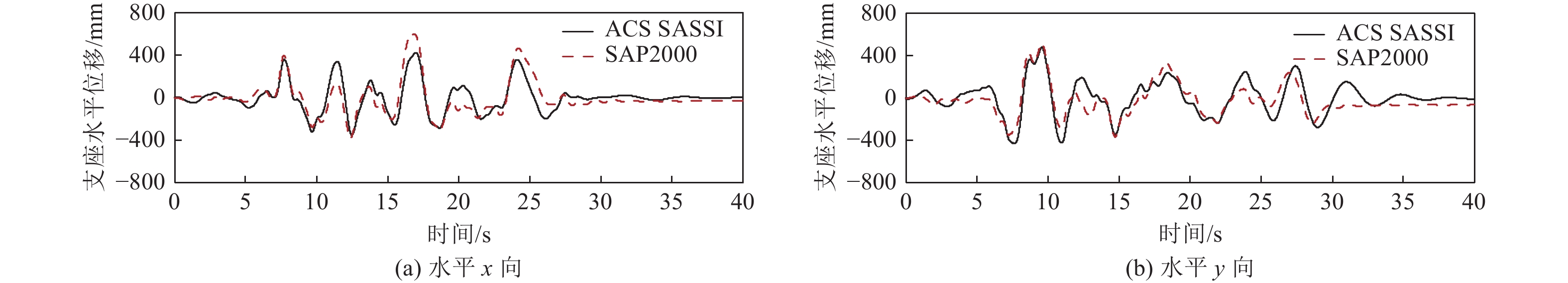

图 5 ACS SASSI与SAP2000软件得到的相同位置支座剪切变形时程响应对比
Figure 5. Comparison of shear deformation time history response of the bearings in the same position between ACS SASSI and SAP2000

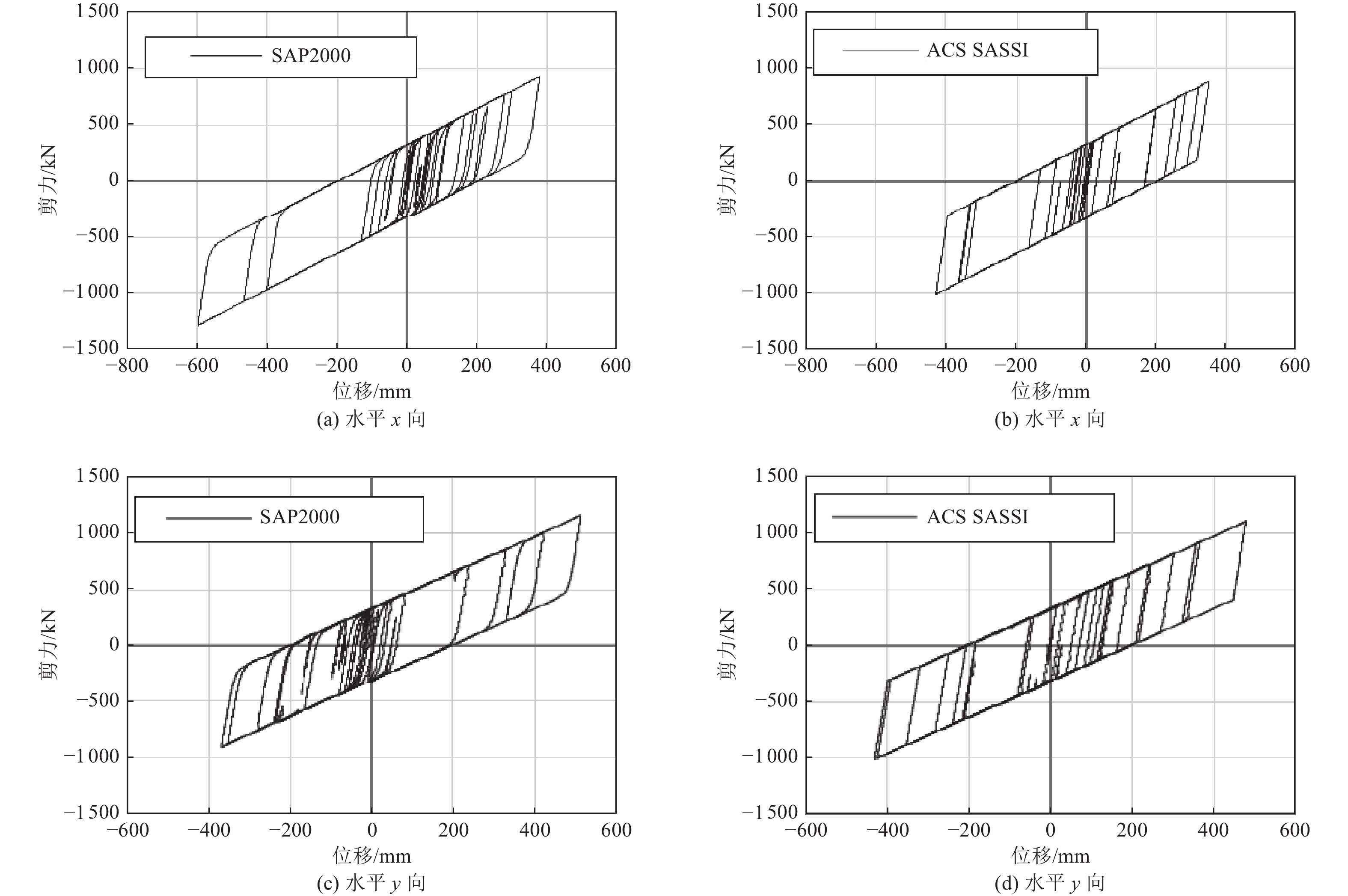

图 6 ACS SASSI与SAP2000得到的角部支座滞回曲线对比
Figure 6. Comparison of hysteretic curves of the bearings in the same position between ACS SASSI and SAP2000

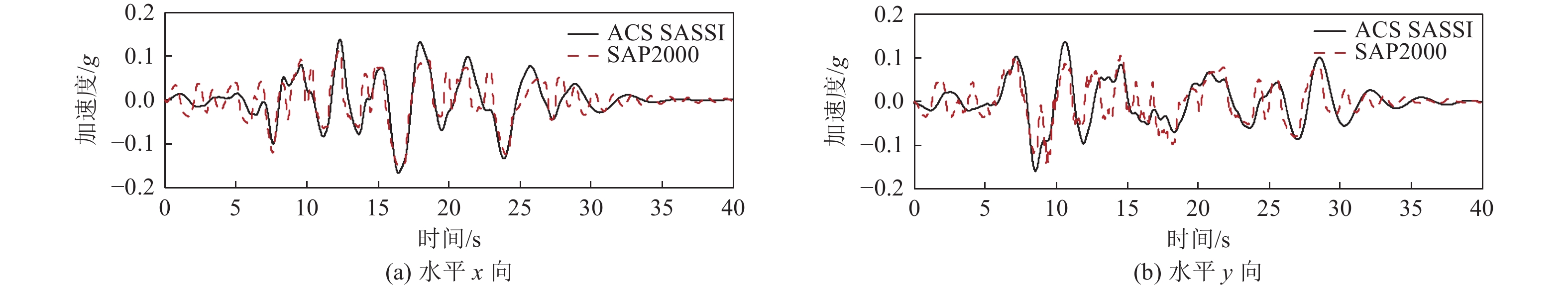

图 7 ACS SASSI与SAP2000软件得到的标高−26.000 m加速度时程响应对比
Figure 7. Comparison of acceleration time history response of elevation −26.000 m between ACS SASSI and SAP2000

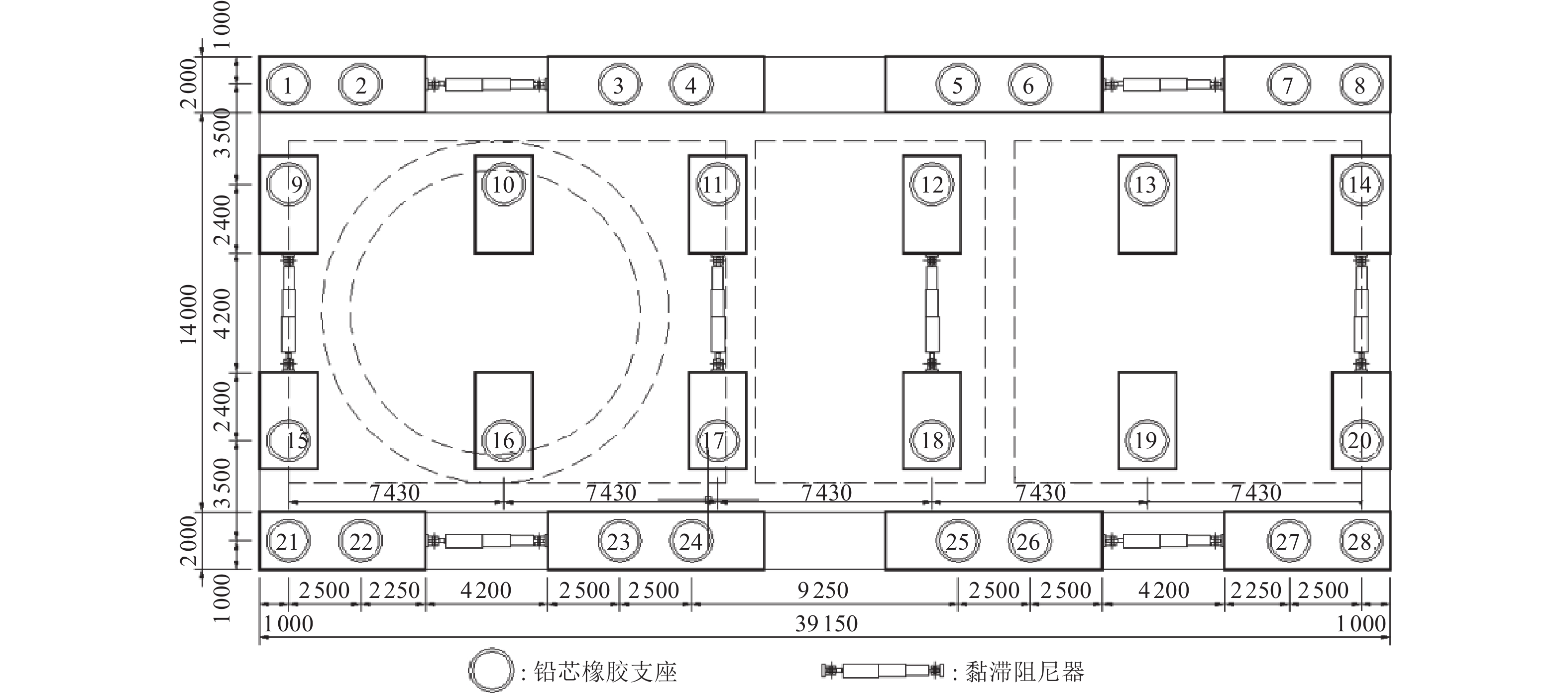

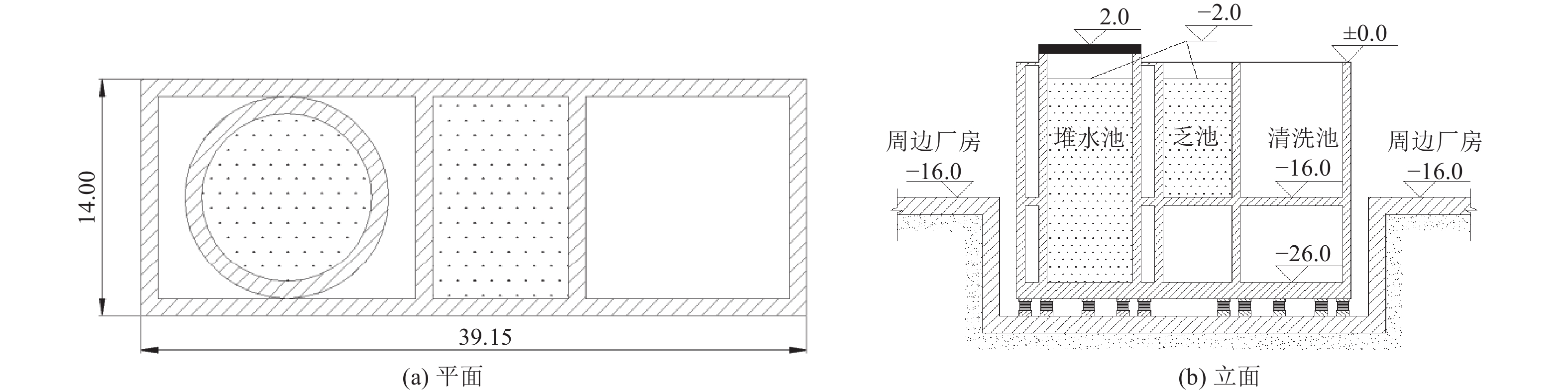

图 8 反应堆厂房隔震方案示意（单位：米）
Figure 8. Base-isolation scheme of the reactor building（Unit: m）

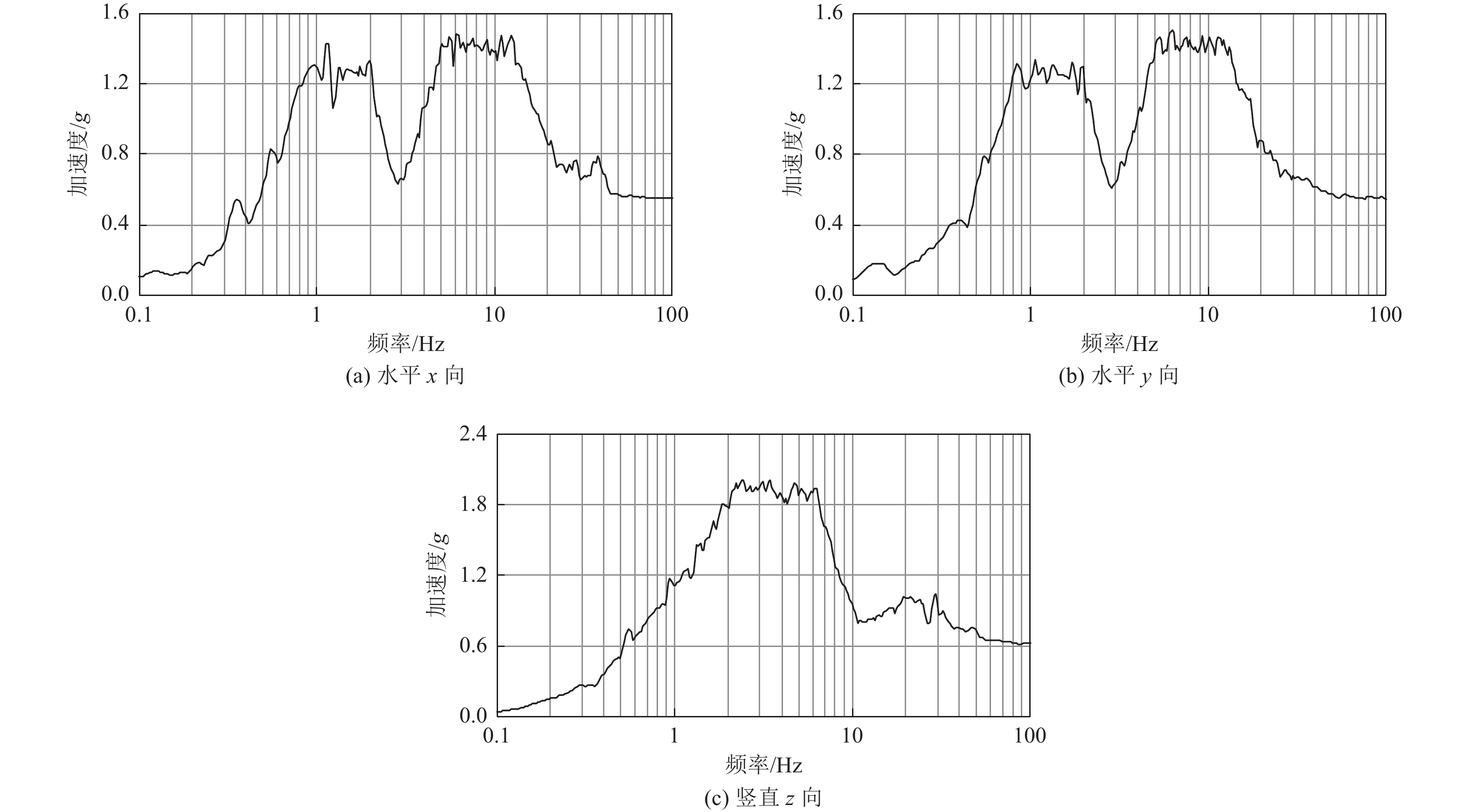

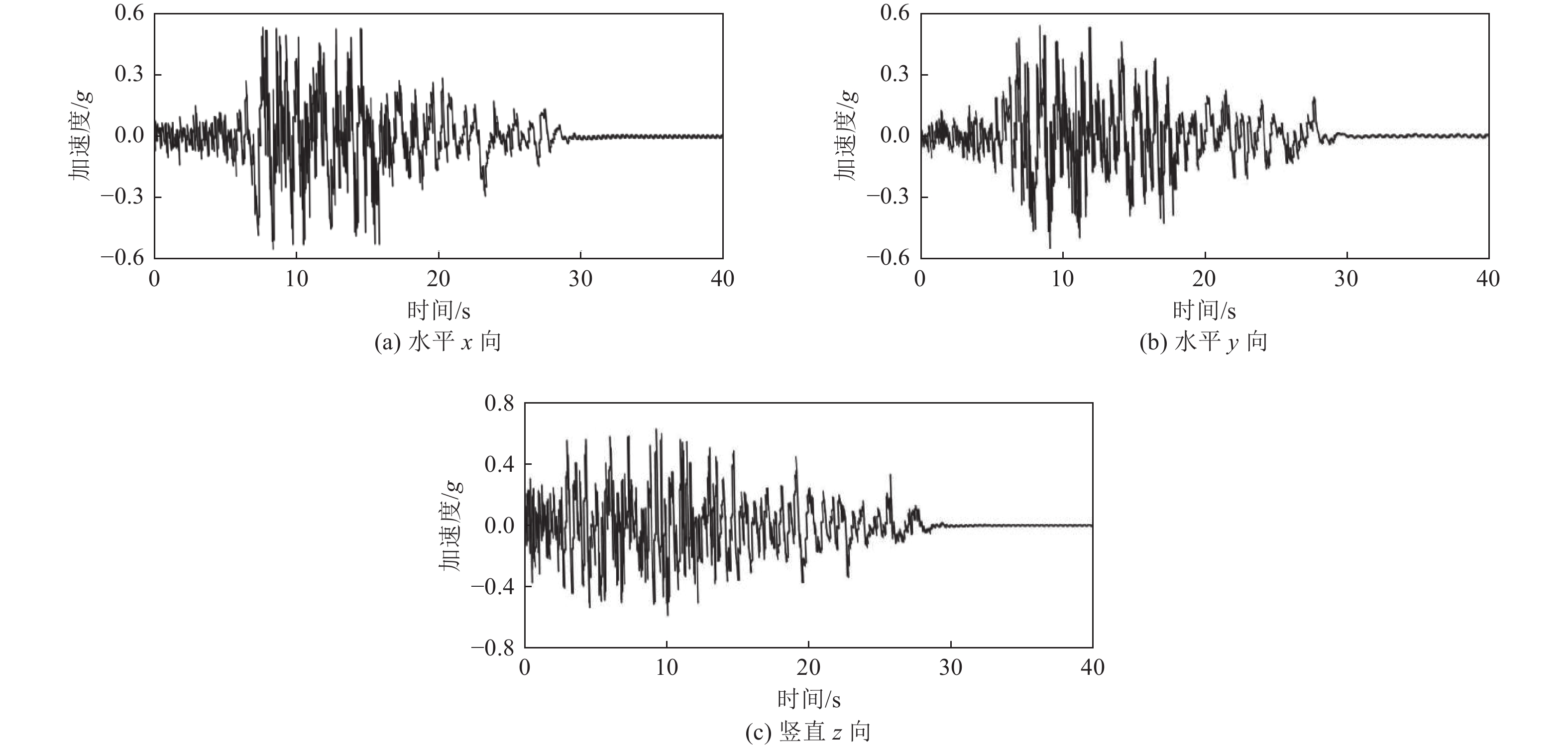

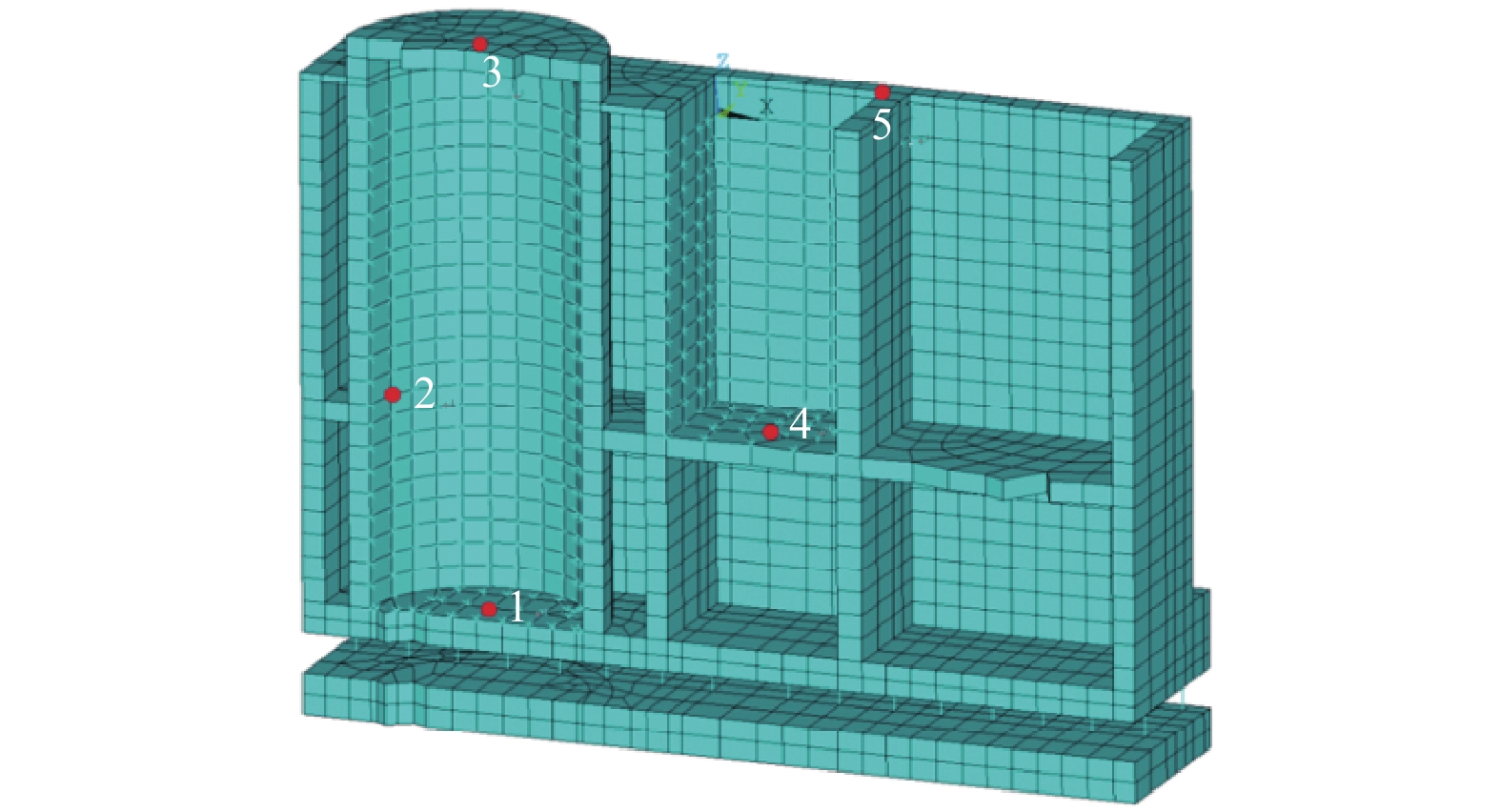

图 12 有限元模型及结构响应输出位置示意
Figure 12. Finite element model and output position of structure response

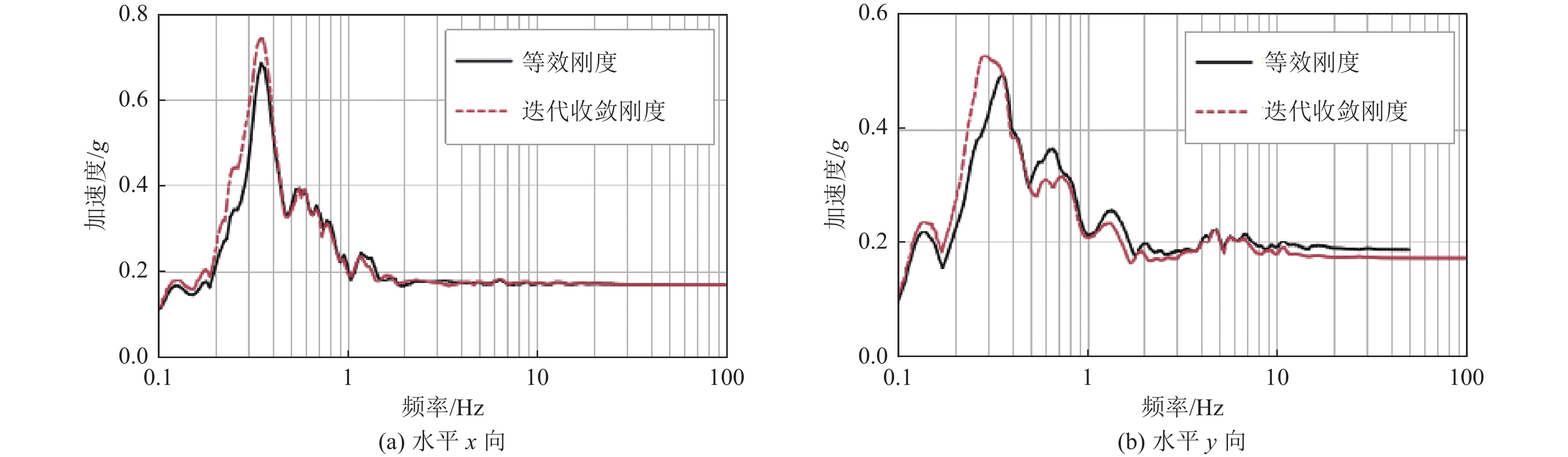

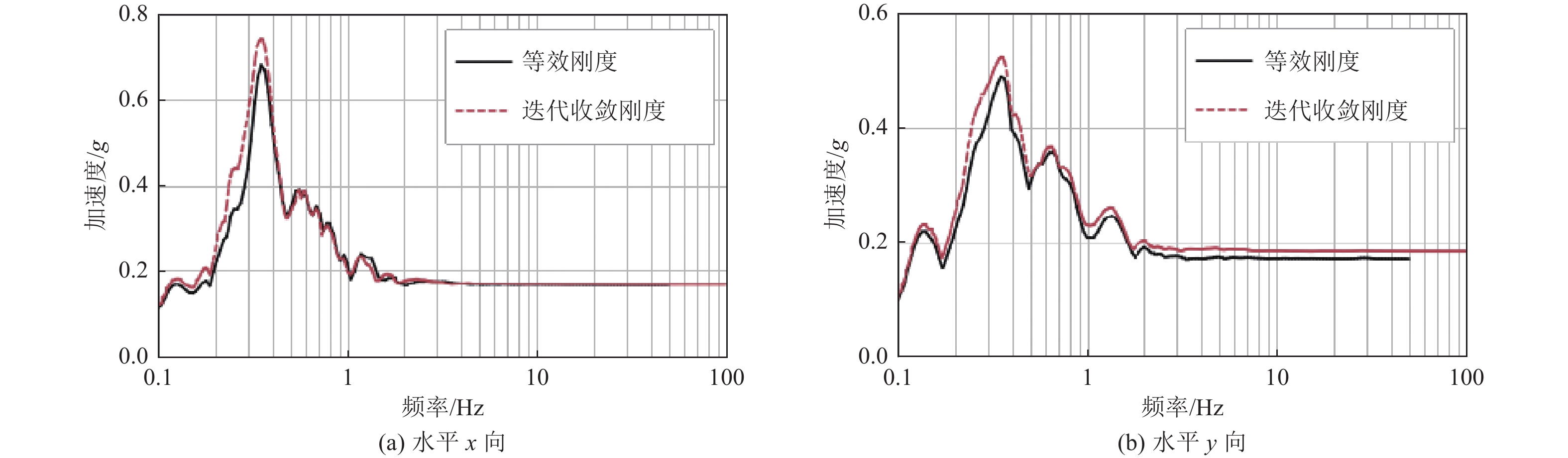

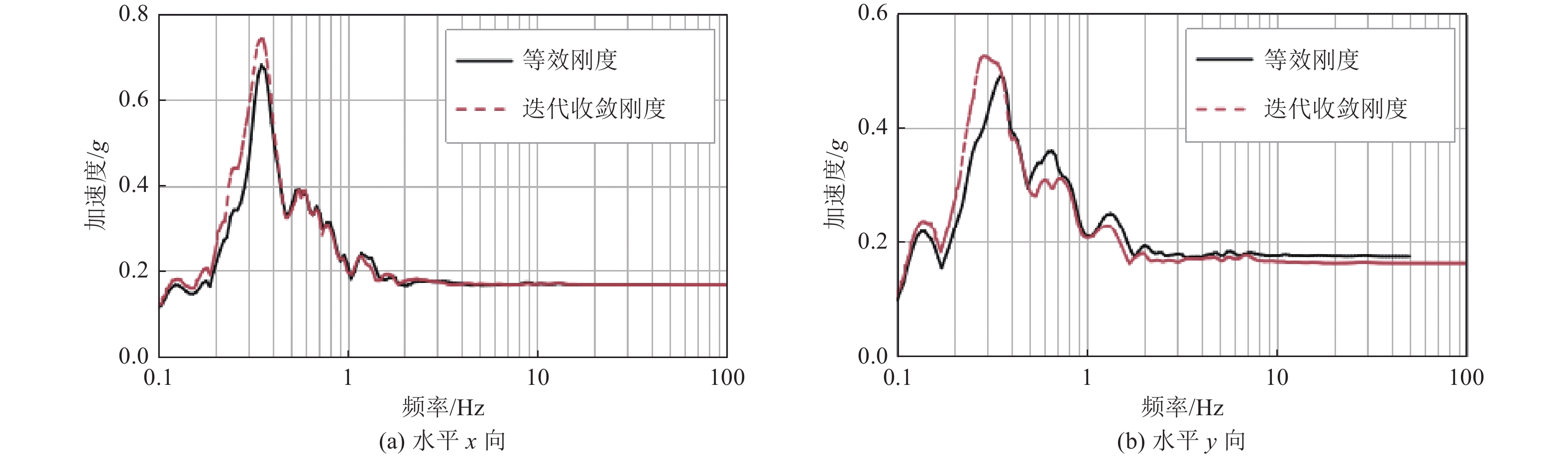

图 13 不同弹簧刚度得到的节点3楼层反应谱对比（硬岩厂址）
Figure 13. Comparison of ISRSs among different spring stiffness for node 3 （Hard rock）
图 14 不同弹簧刚度得到的节点3楼层反应谱对比（中硬岩厂址）
Figure 14. Comparison of ISRSs among different spring stiffness for node 3 （Medium hard rock）
图 15 不同弹簧刚度得到的节点3楼层反应谱对比（软土厂址）
Figure 15. Comparison of ISRSs among different spring stiffness for node 3 （Soft soil）
图 16 不同弹簧刚度得到的节点4楼层反应谱对比（硬岩厂址）
Figure 16. Comparison of ISRSs among different spring stiffness for node 4 （Hard rock）

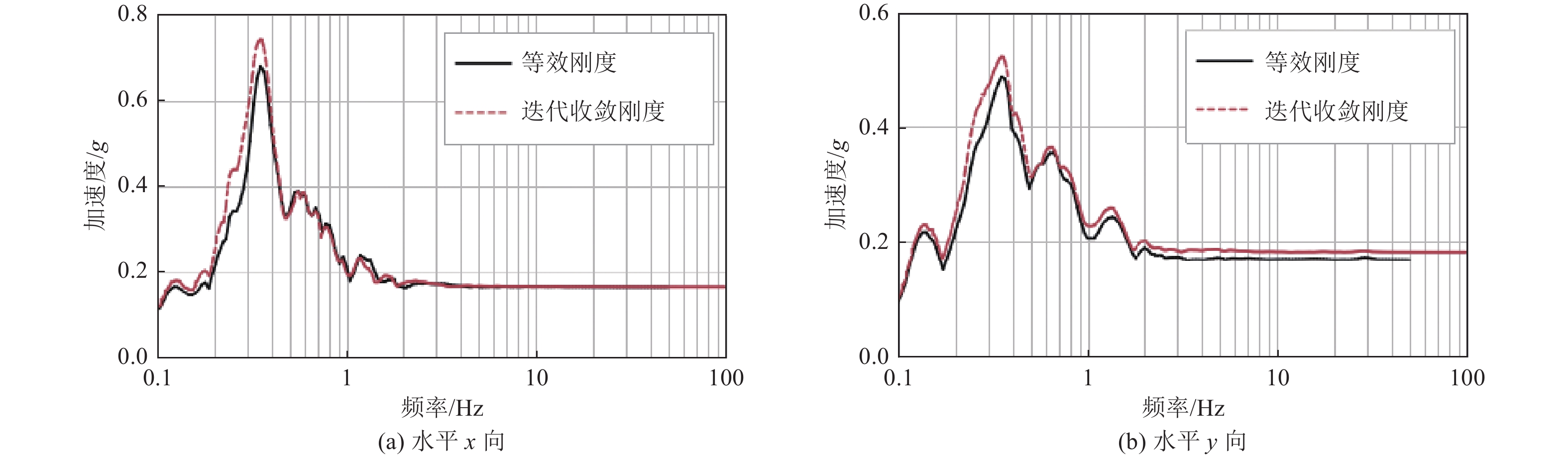

图 17 不同弹簧刚度得到的节点4楼层反应谱对比（中硬岩厂址）
Figure 17. Comparison of ISRSs among different spring stiffness for node 4 （Medium hard rock）

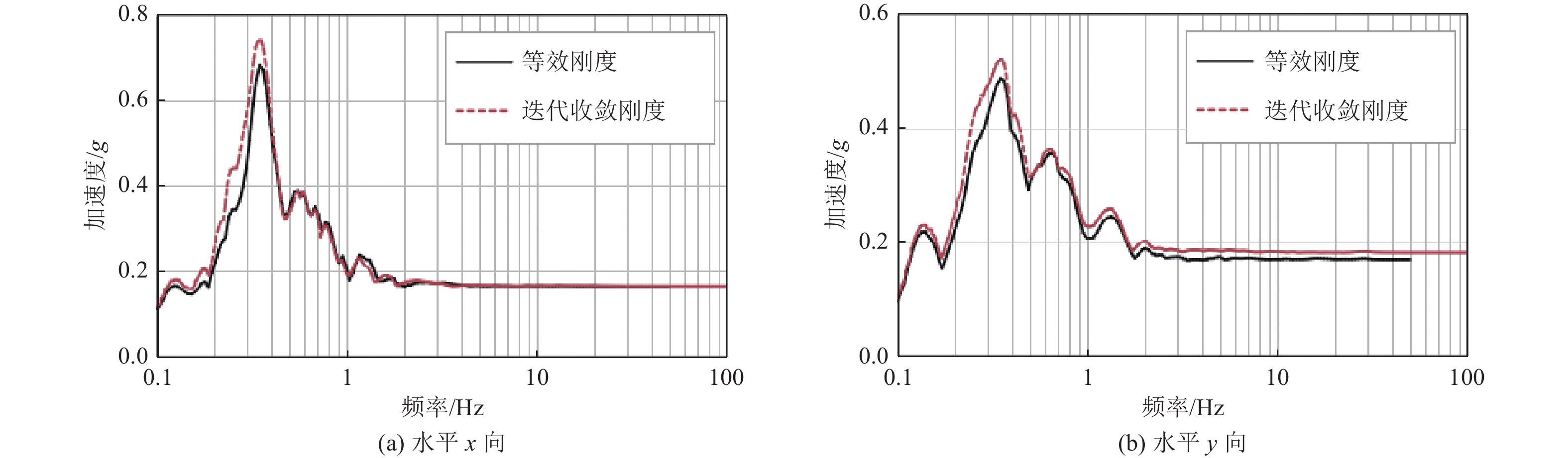

图 18 不同弹簧刚度得到的节点4楼层反应谱对比（软土厂址）
Figure 18. Comparison of ISRSs among different spring stiffness for node 4 （Soft soil）
表 1 典型厂址特征参数
Table 1. Characteristic parameters of three typical plant sites
参数 硬岩 中硬岩 软土 剪切波速vs/（m·s−1） 2 166 1 311 407 压缩波速vp/（m·s−1） 3 970 2 613 1 158 水平向阻尼比 0.051 0.063 0.08 竖向阻尼比 0.051 5 0.063 0.08 密度ρ/（kg·m−3） 2 667 2 383 1 920
下载: 导出CSV
-
林皋, 1991. 土—结构动力相互作用. 世界地震工程, （1）: 4—21, 36Lin G. , 1991. Soil structure dynamic interaction. World Earthquake Engineering, (1): 4—21, 36. (in Chinese) 罗翔, 戴靠山, 吕洋等, 2020. 软土场地基础隔震建筑减震性能研究. 地震工程与工程振动, 40（1）: 213—222Luo X. , Dai K. S. , Lv Y. , et al. , 2020. Seismic response reduction of base-isolated buildings located on soft soil sites. Earthquake Engineering and Engineering Vibration, 40(1): 213—222. (in Chinese) 彭齐驭, 刘玉岚, 王彪, 2020. 考虑土-结构相互作用的安全壳隔震与支座数量优化. 防灾减灾工程学报, 40（3）: 372—379, 438Peng Q. Y. , Liu Y. L. , Wang B. , 2020. Seismic response of base-isolated nuclear containment and optimization for the number of isolation bearings considering soil-structure interaction. Journal of Disaster Prevention and Mitigation Engineering, 40(3): 372—379, 438. (in Chinese) 孙晓颖, 陈健, 2012. 基于等效线性地基的某工业厂房抗震分析. 工业建筑, 42（S1）: 439—442, 484Sun X. Y. , Chen J. , 2012. Seismic analysis of an industrial plant building based on equivalent linear soil. Industrial Construction, 42(S1): 439—442, 484. (in Chinese) 谭平, 宋晓, 周福霖, 2016. 考虑SSI效应及支座转动的隔震体系性能研究. 土木工程学报, 49（S1）: 78—83Tan P. , Song X. , Zhou F. L. , 2016. Performance research on seismic isolated structure considering soil-structure interaction and rotation of isolation layer. China Civil Engineering Journal, 49(S1): 78—83. (in Chinese) 于旭, 庄海洋, 陈国兴等, 2017. 软弱地基上隔震结构地震反应及隔震效果的预测方法研究. 振动工程学报, 30（5）: 817—826Yu X. , Zhuang H. Y. , Chen G. X. , et al. , 2017. Prediction method research of seismic response and seismic isolation effect of isolated structure on soft soil foundation. Journal of Vibration Engineering, 30(5): 817—826. (in Chinese) 张馨圆, 葛楠, 富腾等, 2020. 土-结构相互作用对隔震结构减震效果影响研究. 建筑科学, 36（1）: 26—33Zhang X. Y. , Ge N. , Fu T. , et al. , 2020. Influence of soil-structure interaction on seismic response of isolated structures. Building Science, 36(1): 26—33. (in Chinese) Kelly J. M., 1991. Shake table tests of long period isolation system for nuclear facilities at soft-soil sites. Tokyo: IASMiRT. Seed H. B. , Idriss I. M. , 1971. Simplified procedure for evaluating soil liquefaction potential. Journal of the Soil Mechanics and Foundations Division, 97(9): 1249—1273. doi: 10.1061/JSFEAQ.0001662 -
