The Analysis of Seismogenic Structure of Seismic Source Area of Qingzhou ML4.1 Earthquake in Shandong

  • 摘要: 2022年5月2日7时53分山东潍坊青州发生ML4.1地震,基于中国地震台网中心的地震观测报告和山东数字化台网的波形资料,采用双差定位法对潍坊青州地震序列进行重新精定位,利用 P波初动方法对其中11个ML2.0以上的地震求震源机制解。利用阻尼时空应力反演方法和MSATSI软件包反演震源区局部应力场特征。经过分析得到以下结论:青州地震序列往SN向展布、倾向N。主震震源机制显示为正断,其节面Ⅰ走向263°、倾角31°、滑动角−109°,节面Ⅱ走向106°、倾角61°、滑动角−78°,局部应力场最佳主压应力轴呈NWW-SEE向(−92.19°)低倾角(16.09°)挤压,最优主张应力轴呈SSE-NNW向(0.26°)近水平(8.45°)拉张。本文推断发震断层为走向EW的隐伏断裂。

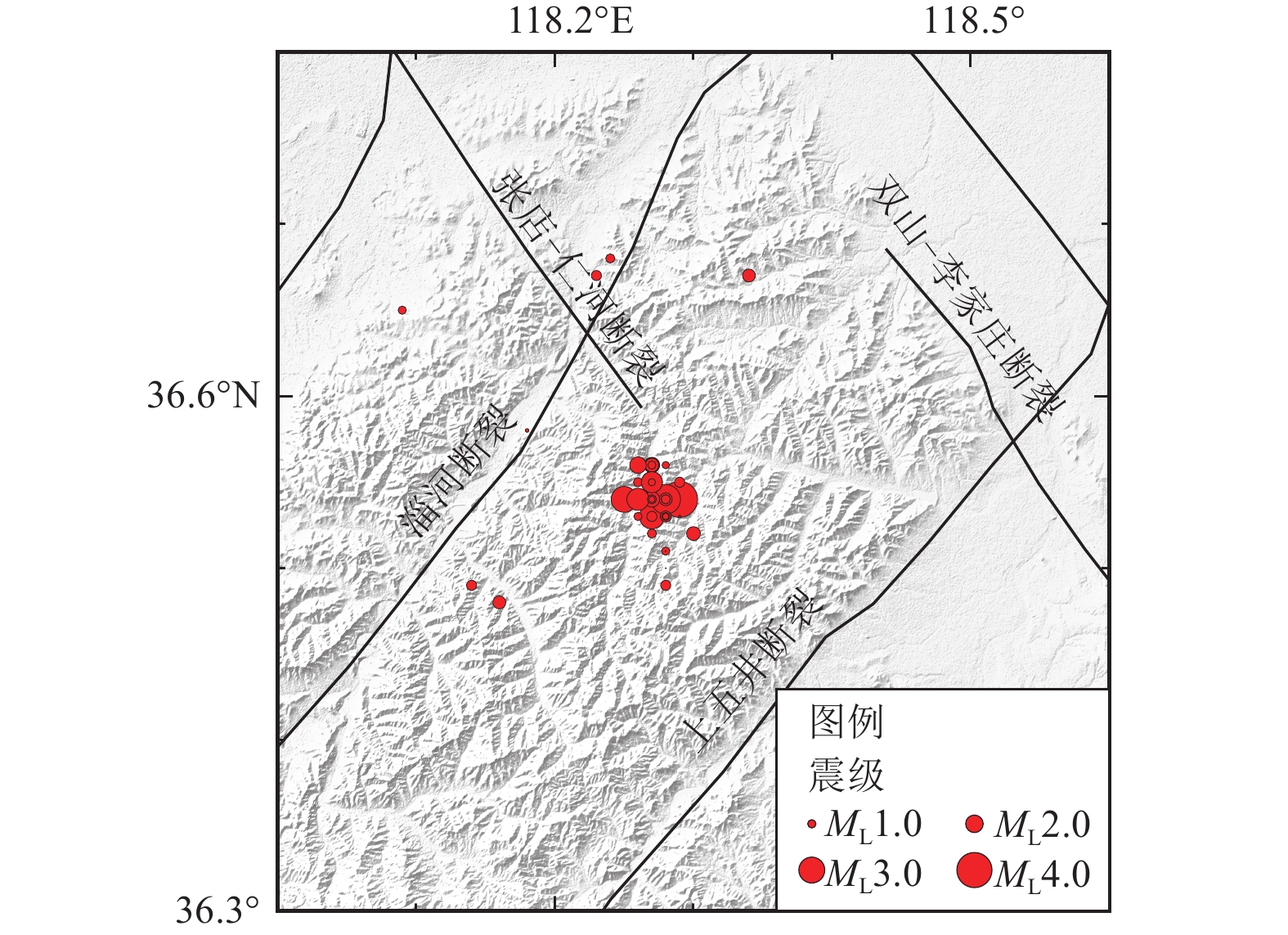

  • 图  1  青州地震震中构造

    Figure  1.  Tectonic background of Qingzhou earthquake swarm

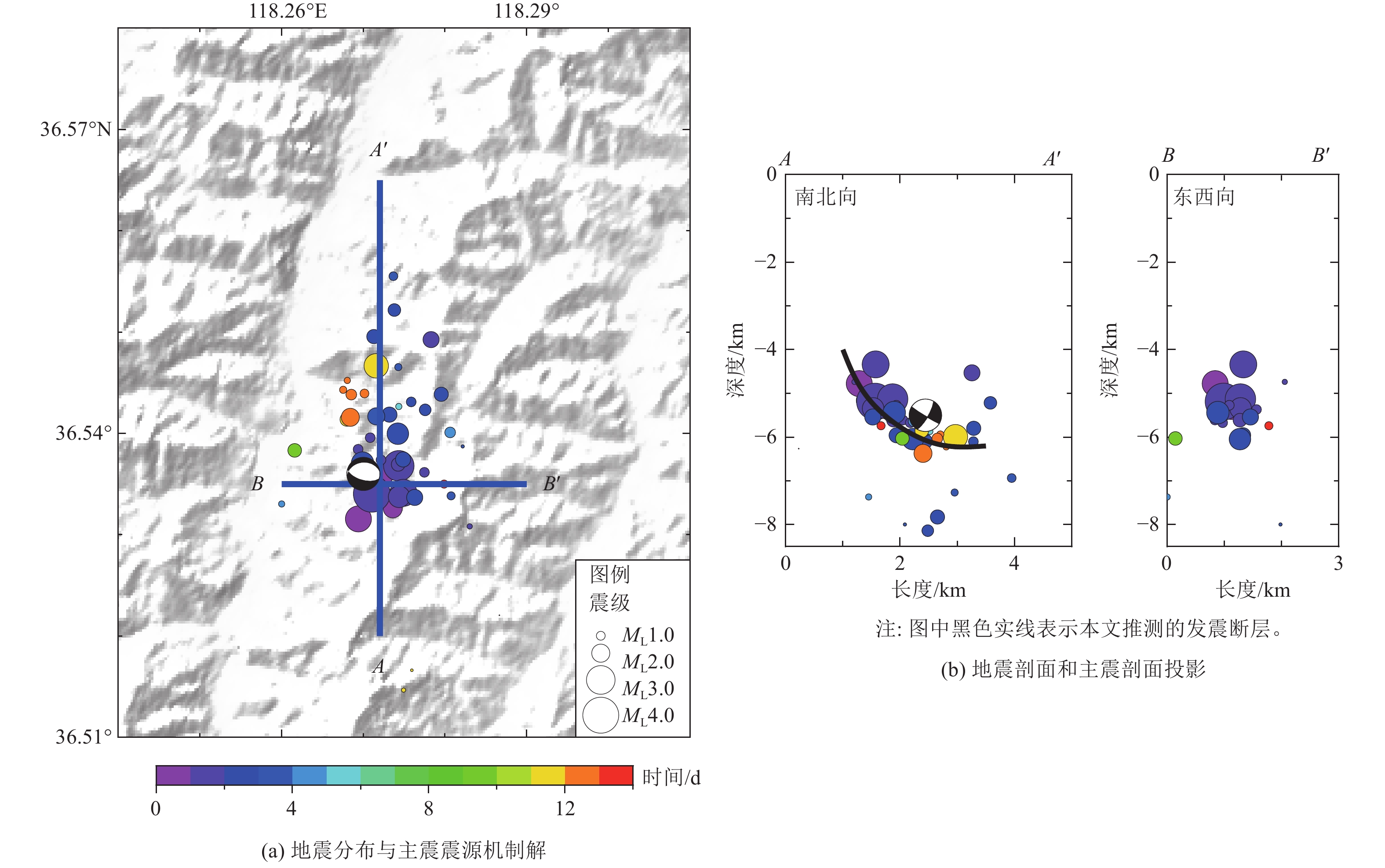

    图  2  青州地震震中及震源机制解分布图

    Figure  2.  The distribution of epicenter and focal mechanism solutions of Qingzhou earthquake sequence

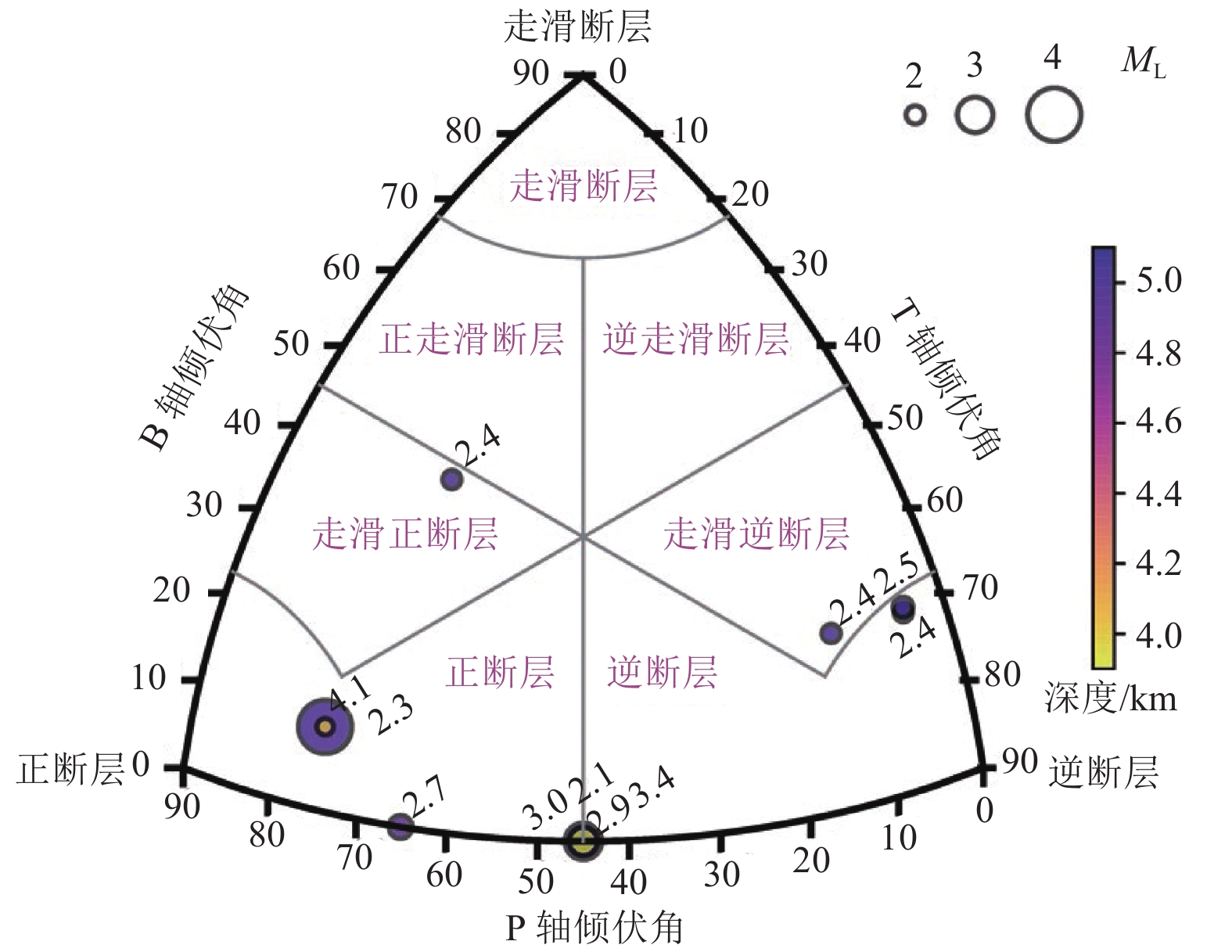

    图  3  地震断层特征分布三元图

    Figure  3.  A ternary diagram representing the distribution of earthquake faulting characteristics

    图  4  双差重定位地震分布图

    Figure  4.  The location distribution of earthquakes after double-difference relocation

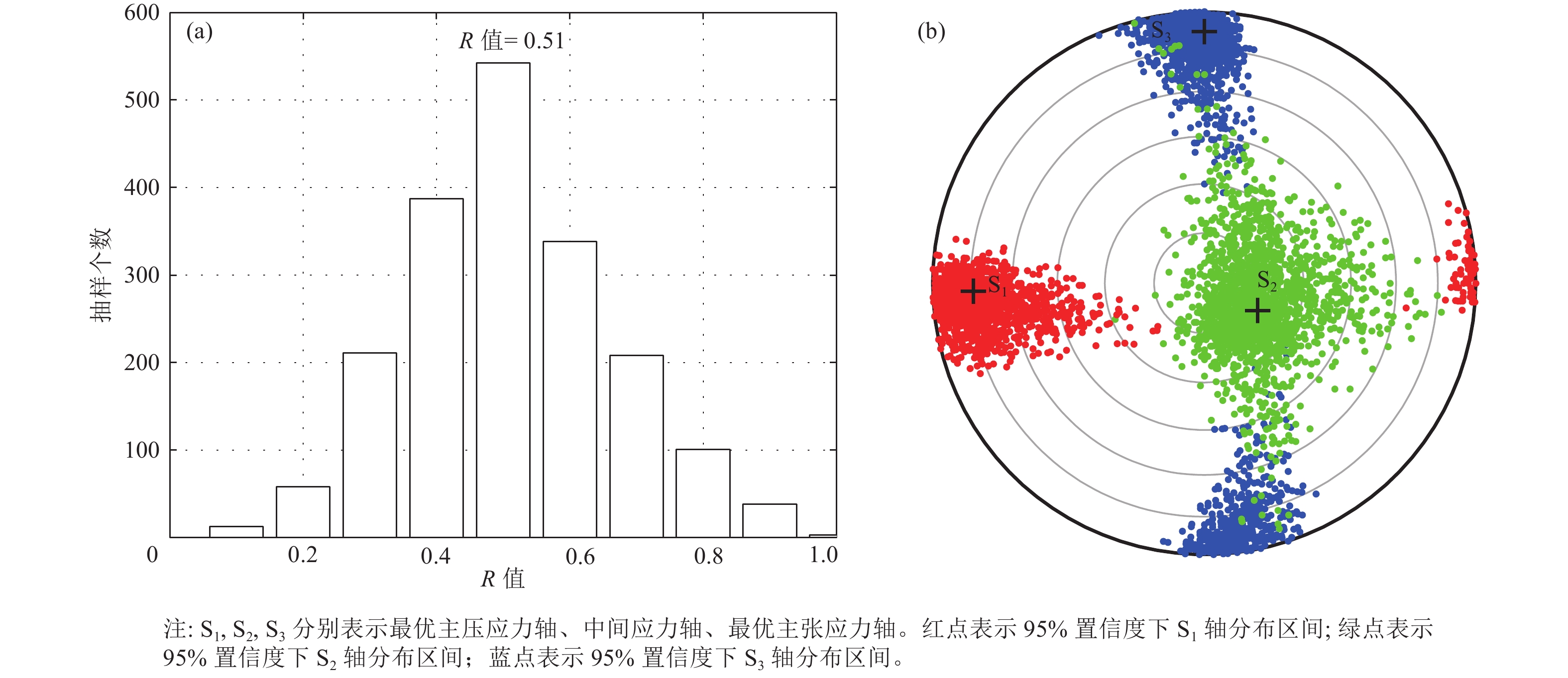

    图  5  青州地震震源区R值和局部应力场投影
