A Comparative Study of Four Commonly Used Declustering Algorithms
-
摘要: 合理的开展地震目录除丛，即确定地震序列中的背景事件和丛集事件，是地震序列分析和模型构建的重要环节。本文针对常用的时空窗法、伪随机时空窗法、最邻近法和随机除丛法进行对比分析，并通过K-S和变化系数等方法在华北地块5条地震带中检验除丛效果。总体而言，时空窗法以及最邻近法有效删除了所有地震带的丛集事件，除丛结果均服从泊松分布，但除丛比例相对较高，尤其对小震的删除比例偏高，使得b值变小；随机除丛法有效去除了序列中丛集事件，同时保留了大多数事件，对震级的依赖性较弱，没有显著地改变统计特性（b值）；相比之下，伪随机时空窗法仅在2个地震带中有效地去除了丛集事件，其余地震带未通过泊松检验，对高震级档地震的删除比例偏高，使得b值增加。本文的对比分析结果可为区域选择合适的除丛算法提供参考，为地震活动性分析和地震危险性评估提供数据支撑。Abstract: Seismic catalog declustering is a crucial step in earthquake sequence analysis and model construction, as it distinguishes background seismic events from clustered events. This study conducts a comparative analysis of four commonly used declustering algorithms—time-space window, time-space link window, nearest neighbor, and stochastic declustering—across five seismic belts in the North China Block. The effectiveness of declustering is evaluated using the Kolmogorov-Smirnov (K-S) test and the coefficient of variation (CV) of interevent times. The results indicate that the time-space window and nearest neighbor algorithms effectively remove clustered events in all seismic zones, yielding declustered catalogs that follow a Poisson distribution. However, these methods tend to remove a high proportion of small earthquakes, leading to a reduction in the b value. In contrast, the stochastic declustering algorithm successfully eliminates clustered events while preserving most seismic events, demonstrating minimal magnitude dependence and negligible impact on statistical properties such as the b value. The time-space link window algorithm, however, is only effective in two seismic zones, while the remaining zones fail the Poisson test. Moreover, this method disproportionately removes high-magnitude events, resulting in an increased b value. The findings of this study provide a valuable reference for selecting appropriate declustering algorithms in the region and offer data support for seismicity analysis and probabilistic seismic hazard assessment.
-
Key words:
- Seismic belts /
- Declustering algorithms /
- Declustering rate /
- Poisson test
1)1 2http://10.5.160.18/console/exit.action ，查阅时间截至2024年02月10日。 -
图 1 华北地块不同地震带的地震活动特征
Figure 1. The seismicity characteristics of different seismic zones in the North China block

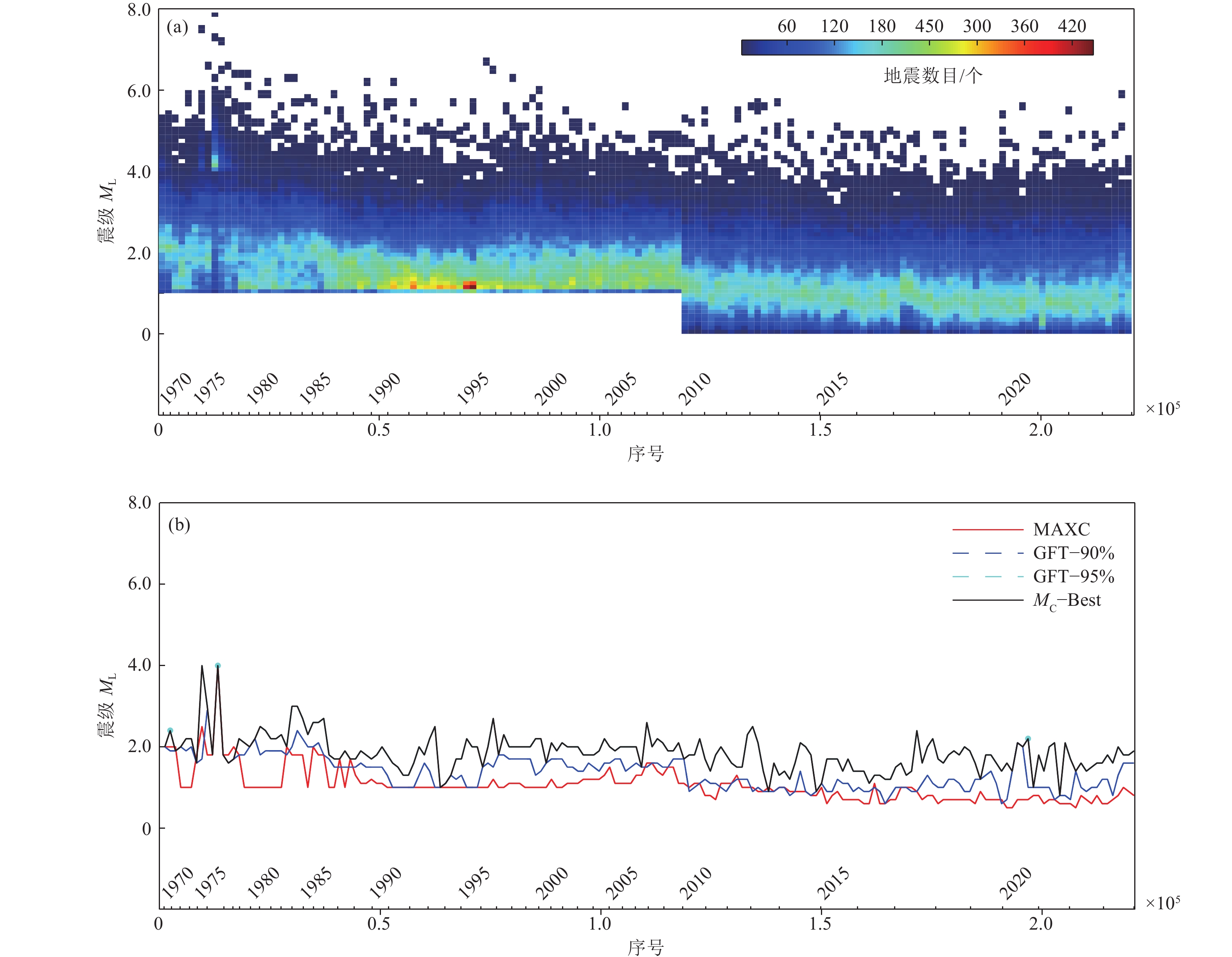

图 2 华北地块1970年以来地震目录完整性分析
Figure 2. Completeness analysis of earthquake catalogs in the North China block since 1970
图 3 华北地块不同地震带序列活动的除丛特征
Figure 3. The declustering characteristics of seismicity sequences in different seismic zones of the North China block
图 4 四种除丛算法在华北地块不同地震带的移除比例
Figure 4. Fraction of earthquake removed by declustering algorithms in different seismic zones of the North China block
图 5 华北地块不同地震带2.5级以上地震事件的b值计算结果
Figure 5. Calculation results of b-values with M ≥ 2.5 in different seismic zones of the North China block
表 1 4种除丛算法的对比分析结果
Table 1. Comparative analysis of results by four declustering algorithms
构造区域 除丛算法 背景数目/个 丛集数目/个 移除比例/% 变化系数Cv K-S检验 b P值 α=0.01，是否接受原假设 长江下游—黄海地震带 原始目录 2769 0 0 1.3463 6.8 e-09 否 0.78±0.01 时空窗法 1427 1342 48.47 1.0115 0.2037 是 0.72±0.02 伪随机时空窗法 2260 509 18.38 1.1821 0.0367 是 0.83±0.02 最邻近法 1350 1419 51.25 0.9388 0.2755 是 0.72±0.02 随机除丛法 2007 762 27.52 1.1228 0.4704 是 0.78±0.02 郯庐地震带 原始目录 6160 0 0 1.4072 1.9 e-11 否 0.83±0.01 时空窗法 1910 4250 68.99 1.0309 0.4654 是 0.79±0.02 伪随机时空窗法 4485 1675 27.19 1.1513 6.7 e-06 否 0.98±0.01 最邻近法 1900 4260 69.16 0.9461 0.2989 是 0.81±0.02 随机除丛法 3109 3051 49.53 1.0937 0.0818 是 0.88±0.02 华北平原地震带 原始目录 5391 0 0 1.4685 2.1 e-17 否 0.75±0.01 时空窗法 1399 3992 74.05 1.0070 0.1792 是 0.78±0.02 伪随机时空窗法 3817 1574 29.20 1.1768 1.9 e-05 否 0.88±0.01 最邻近法 1763 3628 67.30 0.9454 0.1907 是 0.80±0.02 随机除丛法 2779 2612 48.45 1.0811 0.0403 是 0.79±0.02 汾渭地震带 原始目录 3994 0 0 1.3014 6.3 e-08 否 0.89±0.01 时空窗法 1390 2604 65.20 0.9973 0.2515 是 0.78±0.02 伪随机时空窗法 3191 803 20.11 1.1097 2.2 e-04 否 1.03±0.02 最邻近法 1938 2056 51.48 0.9110 0.9293 是 0.89±0.02 随机除丛法 2817 1177 29.47 1.0993 0.0653 是 0.96±0.02 银川—河套地震带 原始目录 3317 0 0 1.3332 1.3 e-07 否 0.77±0.01 时空窗法 1123 2194 66.14 0.9893 0.3021 是 0.69±0.02 伪随机时空窗法 2720 597 18.00 1.1816 0.0130 是 0.85±0.01 最邻近法 1542 1775 53.51 0.9868 0.0997 是 0.73±0.02 随机除丛法 2637 680 20.50 1.1238 0.0201 是 0.78±0.02
下载: 导出CSV
-
陈凌,刘杰,陈颙等,1998. 地震活动性分析中余震的删除. 地球物理学报,41(S1):244−252.Chen L., Liu J., Chen Y., et al., 1998. Aftershock deletion in seismicity analysis. Chinese Journal of Geophysics, 41(S1): 244−252. (in Chinese) 蒋长胜,庄建仓,2010. 基于时-空ETAS模型给出的川滇地区背景地震活动和强震潜在危险区. 地球物理学报,53(2):305−317.Jiang C. S., Zhuang J. C., 2010. Evaluation of background seismicity and potential source zones of strong earthquakes in the Sichuan-Yunan region base on the space-time ETAS model. Chinese Journal of Geophysics, 53(2): 305−317. (in Chinese) 蒋长胜,吴忠良,2011. 2010年玉树 M S7.1地震前的中长期加速矩释放(AMR)问题. 地球物理学报,54(6):1501−1510. doi: 10.3969/j.issn.0001-5733.2011.06.009Jiang C. S., Wu Z. L., 2011. Intermediate-term medium-range accelerating moment release (AMR) priori to the 2010 Yushu M S7.1 earthquake. Chinese Journal of Geophysics, 54(6): 1501−1510. (in Chinese) doi: 10.3969/j.issn.0001-5733.2011.06.009 潘华,高孟潭,谢富仁,2013. 新版地震区划图地震活动性模型与参数确定. 震灾防御技术,8(1):11−23.Pan H., Gao M. T., Xie F. R., 2013. The earthquake activity model and seismicity parameters in the new seismic hazard map of China. Technology for Earthquake Disaster Prevention, 8(1): 11−23. (in Chinese) 易桂喜,闻学泽,范军等,2004. 由地震活动参数分析安宁河-则木河断裂带的现今活动习性及地震危险性. 地震学报,26(3):294−303.Yi G. X., Wen X. Z., Fan J., et al., 2004. Assessing current faulting behaviors and seismic risk of the Anninghe-Zemuhe fault zone from seismicity parameters. Acta Seismologica Sinica, 26(3): 294−303. (in Chinese) 张帆,韩晓明,陈立峰等,2018. 鄂尔多斯地块北缘 b 值的时空特征及其地震预测效能分析. 地震学报,40(6):785−796.Zhang F., Han X. M., Chen L. F., et al., 2018. Spatio-temporal characteristics of b value in the northern margin of Ordos block and its earthquake prediction efficiency. Acta Seismologica Sinica, 40(6): 785−796. (in Chinese) 朱艾斓,徐锡伟,甘卫军等,2009. 鲜水河-安宁河-则木河断裂带上可能存在的凹凸体:来自背景地震活动性的证据. 地学前缘,16(1):218−225.Zhu A. L., Xu X. W., Gan W. J., et al., 2009. The possible asperities on the Xianshuihe-Anninghe-Zemuhe fault zone: evidence from background seismicity. Earth Science Frontiers, 16(1): 218−225. (in Chinese) Abolfathian N., Martínez-Garzón P., Ben-Zion Y., 2019. Spatiotemporal variations of stress and strain parameters in the San Jacinto fault zone. Pure and Applied Geophysics, 176(3): 1145−1168. doi: 10.1007/s00024-018-2055-y Aki K., 1965. Maximum likelihood estimate of b in the formula log N=a-bM and its confidence limits. Bulletin of the Earthquake Research Institute Tokyo University, 43: 237−239. Baiesi M., Paczuski M., 2004. Scale-free networks of earthquakes and aftershocks. Physical Review E, 69(6): 066106. doi: 10.1103/PhysRevE.69.066106 Ben-Zion Y., Zaliapin I., 2020. Localization and coalescence of seismicity before large earthquakes. Geophysical Journal International, 223(1): 561−583. doi: 10.1093/gji/ggaa315 Bi J. M., Jiang C. S., 2022. Identification and statistical characteristics of foreshock sequences in the north-south seismic belt. Journal of Seismology, 26(3): 499−512. doi: 10.1007/s10950-021-10063-8 Crespo-Martín C., Martín-González F., Yazdi P., et al., 2021. Time-dependent and spatiotemporal statistical analysis of intraplate anomalous seismicity: Sarria-Triacastela-Becerreá (NW Iberian Peninsula, Spain). Geophysical Journal International, 225: 477−493. doi: 10.1093/gji/ggaa595 Gardner J. K. , Knopoff L. , 1974. Is the sequence of earthquakes in southern California, with aftershocks removed, Poissonian? Bulletin of the Seismological Society of America, 64 (5): 1363−1367. Gutenberg B., Richter C. F., 1944. Frequency of earthquakes in California. Bulletin of the Seismological Society of America, 34(4): 185−188. doi: 10.1785/BSSA0340040185 Kagan Y. Y., Jackson D. D., 1991. Long-term earthquake clustering. Geophysical Journal International, 104(1): 117−133. doi: 10.1111/j.1365-246X.1991.tb02498.x Llenos A. L., Michael A. J., 2020. Regionally optimized background earthquake rates from ETAS (ROBERE) for probabilistic seismic hazard assessment. Bulletin of the Seismological Society of America, 110(3): 1172−1190. doi: 10.1785/0120190279 Luen B., Stark P. B., 2012. Poisson tests of declustered catalogues. Geophysical Journal International, 189(1): 691−700. doi: 10.1111/j.1365-246X.2012.05400.x Martínez-Garzón P., Vavryčuk V., Kwiatek G., et al., 2016. Sensitivity of stress inversion of focal mechanisms to pore pressure changes. Geophysical Research Letters, 43(16): 8441−8450. doi: 10.1002/2016GL070145 Mizrahi L., Nandan S., Wiemer S., 2021. The effect of declustering on the size distribution of mainshocks. Seismological Research Letters, 92(4): 2333−2342. doi: 10.1785/0220200231 Molchan G. M., Dmitrieva O. E., 1992. Aftershock identification: methods and new approaches. Geophysical Journal International, 109(3): 501−516. doi: 10.1111/j.1365-246X.1992.tb00113.x Ogata Y., 1988. Statistical models for earthquake occurrences and residual analysis for point processes. Journal of the American Statistical Association, 83(401): 9−27. doi: 10.1080/01621459.1988.10478560 Ogata Y., 1998. Space-time point-process models for earthquake occurrences. Annals of the Institute of Statistical Mathematics, 50(2): 379−402. doi: 10.1023/A:1003403601725 Pastoressa A. E, Murru M., Taroni M., et al., 2023. Temporal variations of seismicity rates and Gutenberg–Richter b-values for a stochastic declustered catalog: an example in central Italy. Seismological Research Letters, 94(3): 1566−1578. Peng W., Marsan D., Chen K. H., et al., 2021. Earthquake swarms in Taiwan: a composite declustering method for detection and their spatial characteristics. Earth and Planetary Science Letters, 574: 117160. doi: 10.1016/j.jpgl.2021.117160 Peresan A., Gentili S., 2020. Identification and characterisation of earthquake clusters: a comparative analysis for selected sequences in Italy and adjacent regions. Bollettino di Geofisica Teorica ed Applicata, 61(1): 57−80. Petersen M. D., Mueller C. S., Moschetti M. P., et al., 2018. 2018 One-year seismic hazard forecast for the central and eastern united states from induced and natural earthquakes. Seismological Research Letters, 89(3): 1049−1061. doi: 10.1785/0220180005 Reasenberg P., 1985. Second-order moment of central California seismicity, 1969–1982. Journal of Geophysical Research: Solid Earth, 90(B7): 5479−5495. doi: 10.1029/JB090iB07p05479 Schorlemmer D., Gerstenberger M. C., 2007. RELM testing center. Seismological Research Letters, 78(1): 30−36. doi: 10.1785/gssrl.78.1.30 Shi Y. L., Bolt B. A., 1982. The standard error of the magnitude-frequency b value. Bulletin of the Seismological Society of America, 72(5): 1677−1687. doi: 10.1785/BSSA0720051677 Talbi A., Nanjo K., Satake K., et al., 2013. Comparison of seismicity declustering methods using a probabilistic measure of clustering. Journal of Seismology, 17(3): 1041−1061. doi: 10.1007/s10950-013-9371-6 Taroni M., Akinci A., 2021. Good practices in PSHA: declustering, b-value estimation, foreshocks and aftershocks inclusion: a case study in Italy. Geophysical Journal International, 224(2): 1174−1187. Teng G. Y., Baker J. W., 2019. Seismicity declustering and hazard analysis of the Oklahoma-Kansas region. Bulletin of the Seismological Society of America, 109(6): 2356−2366. doi: 10.1785/0120190111 Toda S., Stein R. S., Reasenberg P. A., et al., 1998. Stress transferred by the 1995 MW=6.9 Kobe, Japan, shock: effect on aftershocks and future earthquake probabilities. Journal of Geophysical Research: Solid Earth, 103(B10): 24543−24565. doi: 10.1029/98JB00765 Wiemer S., Wyss M., 2000. Minimum magnitude of completeness in earthquake catalogs: examples from Alaska, the western United States, and Japan. Bulletin of the Seismological Society of America, 90(4): 859−869. doi: 10.1785/0119990114 Wyss M., 1973. Towards a physical understanding of the earthquake frequency distribution. Geophysical Journal International, 31(4): 341−359. doi: 10.1111/j.1365-246X.1973.tb06506.x Zaliapin I., Gabrielov A., Keilis-Borok V., et al., 2008. Clustering analysis of seismicity and aftershock identification. Physical Review Letters, 101(1): 018501. doi: 10.1103/PhysRevLett.101.018501 Zaliapin I., Ben-Zion Y., 2013. Earthquake clusters in southern California I: identification and stability. Journal of Geophysical Research: Solid Earth, 118(6): 2847−2864. doi: 10.1002/jgrb.50179 Zaliapin I., Ben-Zion Y., 2016. A global classification and characterization of earthquake clusters. Geophysical Journal International, 207(1): 608−634. doi: 10.1093/gji/ggw300 Zaliapin I., Ben-Zion Y., 2020. Earthquake declustering using the nearest-neighbor approach in space-time-magnitude domain. Journal of Geophysical Research: Solid Earth, 125(4): e2018JB017120. doi: 10.1029/2018JB017120 Zhou P. C., Yang H. F., Wang B. S., et al., 2019. Seismological investigations of induced earthquakes near the Hutubi underground gas storage facility. Journal of Geophysical Research: Solid Earth, 124(8): 8753−8770. doi: 10.1029/2019JB017360 Zhuang J. C., Ogata Y., Vere-Jones D., 2002. Stochastic declustering of space-time earthquake occurrences. Journal of the American Statistical Association, 97(458): 369−380. doi: 10.1198/016214502760046925 -
