2022年1月2日宁蒗MS5.5地震发震构造研究

李鉴林 常祖峰 万永革 黄少华 刘昌伟 刘强 王珏 阿拉塔

李鉴林,常祖峰,万永革,黄少华,刘昌伟,刘强,王珏,阿拉塔,2023. 2022年1月2日宁蒗MS5.5地震发震构造研究. 震灾防御技术,18(3):536−547. doi:10.11899/zzfy20230310. doi: 10.11899/zzfy20230310
引用本文: 李鉴林,常祖峰,万永革,黄少华,刘昌伟,刘强,王珏,阿拉塔,2023. 2022年1月2日宁蒗MS5.5地震发震构造研究. 震灾防御技术,18(3):536−547. doi:10.11899/zzfy20230310. doi: 10.11899/zzfy20230310
Li Jianlin, Chang Zufeng, Wan Yongge, Huang Shaohua, Liu Changwei, Liu Qiang, Wang Jue, Alata. Discussion on Seismogenic Structure of Ninglang MS5.5 Earthquake on January 2, 2022[J]. Technology for Earthquake Disaster Prevention, 2023, 18(3): 536-547. doi: 10.11899/zzfy20230310
Citation: Li Jianlin, Chang Zufeng, Wan Yongge, Huang Shaohua, Liu Changwei, Liu Qiang, Wang Jue, Alata. Discussion on Seismogenic Structure of Ninglang MS5.5 Earthquake on January 2, 2022[J]. Technology for Earthquake Disaster Prevention, 2023, 18(3): 536-547. doi: 10.11899/zzfy20230310

2022年1月2日宁蒗MS5.5地震发震构造研究

doi: 10.11899/zzfy20230310
基金项目: 云南省地震局青年基金项目(2022K02);云南省地震局科技专项基金项目(2022ZLZX01);国家自然科学基金(U2002211)
详细信息
    作者简介:

    李鉴林,男,生于1977年。硕士,工程师。主要从事活动构造及地震地质研究工作。E-mail:287763109@qq.com

    通讯作者:

    常祖峰,男,生于1966年。正研级高级工程师。主要从事活动构造研究。E-mail:zufch@163.com

Discussion on Seismogenic Structure of Ninglang MS5.5 Earthquake on January 2, 2022

  • 摘要: 2022年1月2日云南省宁蒗县发生MS5.5地震,地震位于川滇边界处泸沽湖附近。历史上该地区曾多次发生5.5级左右的中强地震,震区构造复杂,NW向和NE向断裂展布相互交织,构成棋盘格状。据野外地质调查,震中区附近NW向永宁断裂和NE向日古鲁-岩瓦断裂具有明显的晚更新世活动迹象,同时对永宁新生代构造盆地和新生界具有明显的控制作用。根据泸沽湖西侧地质钻孔推测永宁盆地内尚发育1条与永宁断裂平行的NW向隐伏断层。地震震源机制解、同震位移场、地震烈度分布特征及地震现场破坏调查结果表明,此次地震与NW向永宁活动断裂密切相关。
  • 图  1  震区及附近地震构造

    Figure  1.  Map of seismic in and around the earthquake zone

    图  2  永宁断裂地貌特征

    Figure  2.  Geomorphic characteristics of Yongni fault

    图  3  嘎儿村断层剖面

    Figure  3.  Fault profile of Ga'er village

    图  4  岩瓦NNE向1.2 km公路旁断层剖面

    Figure  4.  Cross section of the fault beside road,1.2 km NNE of Yanwa village

    图  5  泸沽湖西侧钻孔分布与岩芯

    Figure  5.  Borehole distrbution and photograph beside the west of Lugu lake

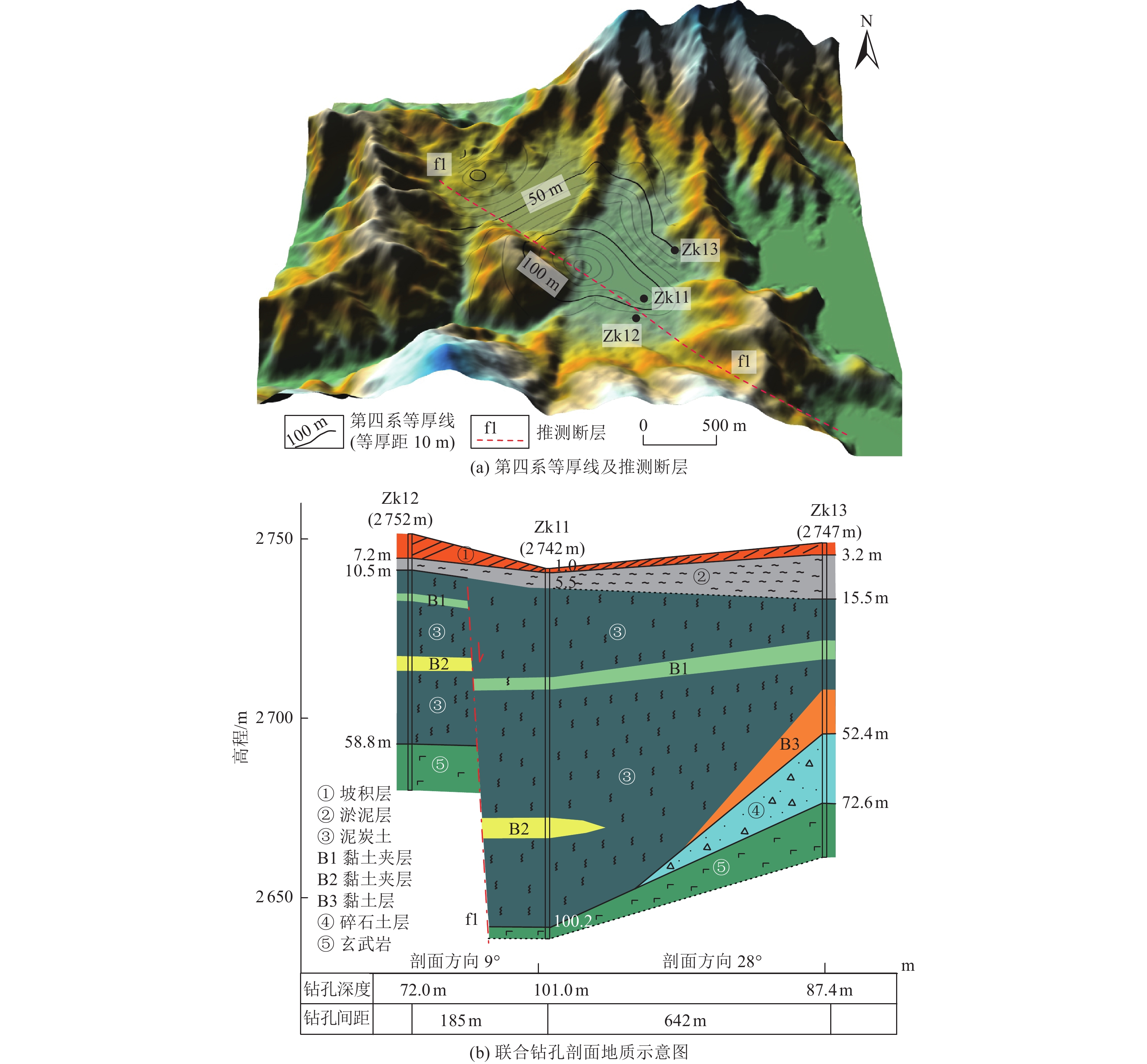

    图  6  第四系等厚线与钻孔联合剖面

    Figure  6.  Quaternary isopach map and borehole join profile

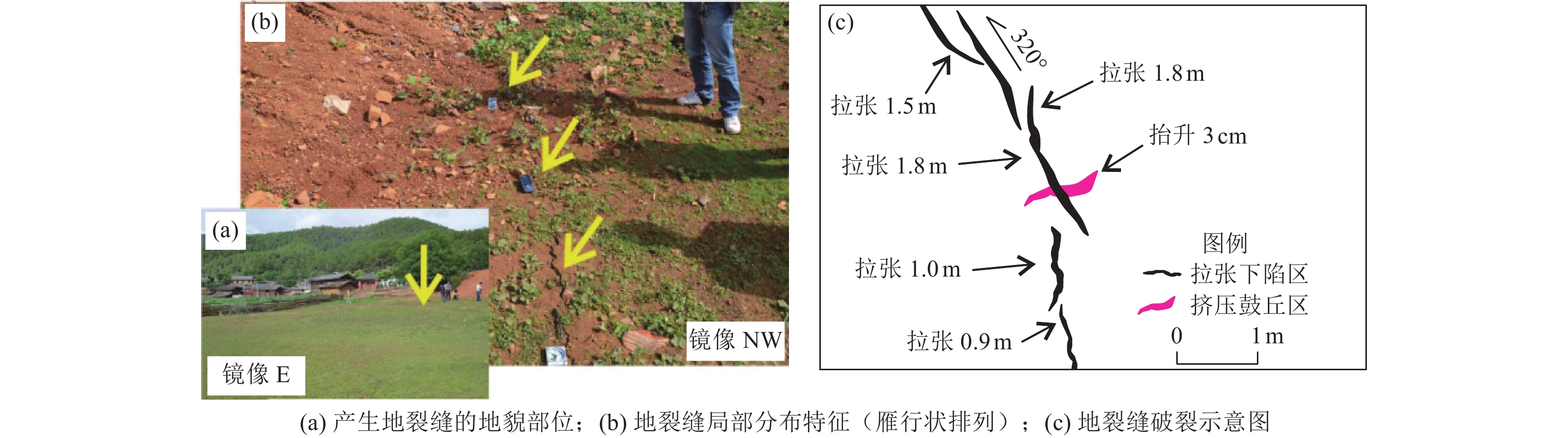

    图  7  竹地村地裂缝

    Figure  7.  Zhudi village ground fissure

    图  8  宁蒗MS5.5地震烈度分布

    Figure  8.  Ninglang MS5.5 earthquake intensity distribution map

    图  9  地震破坏现场调查

    Figure  9.  Site investigation of earthquake damage

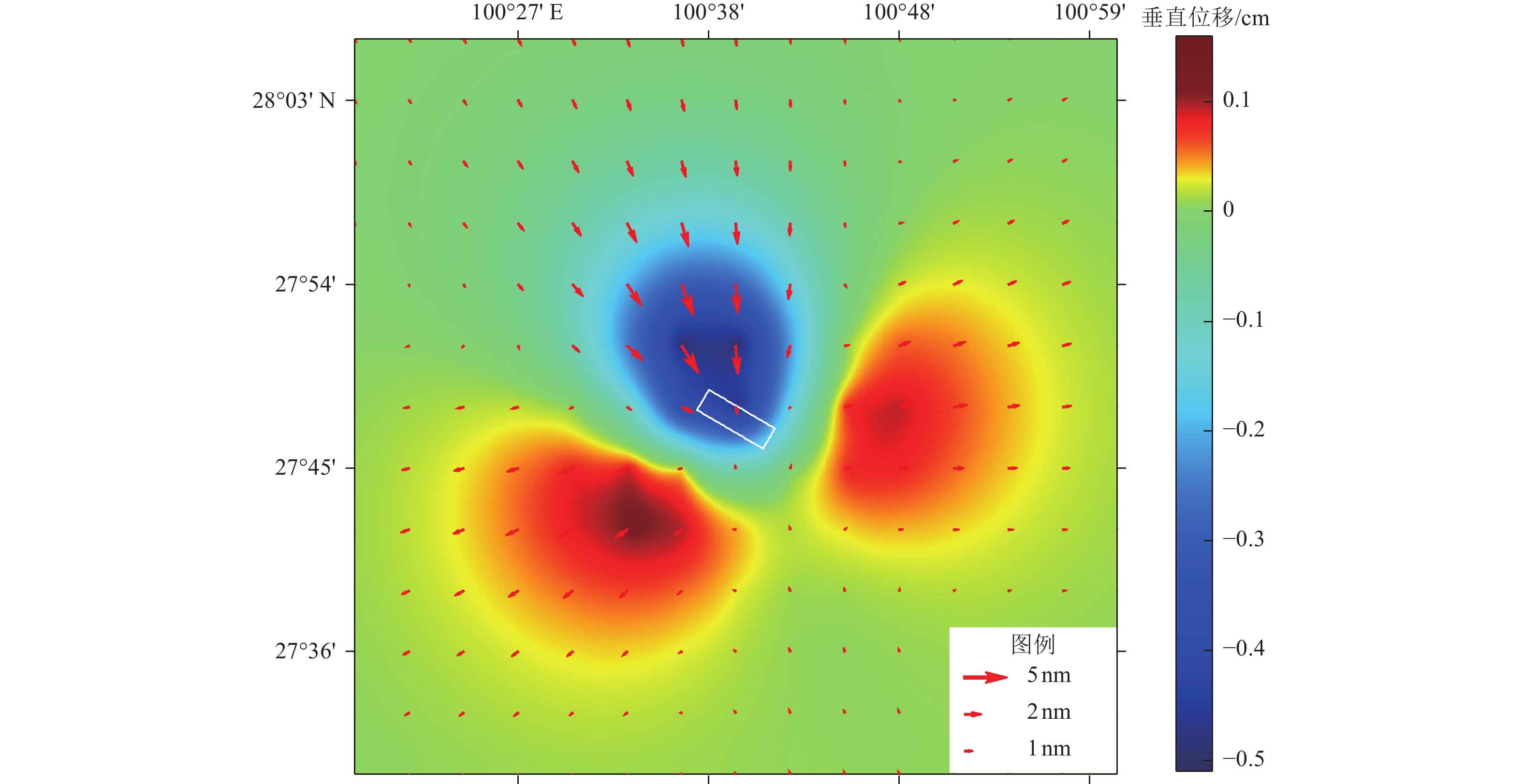

    图  10  宁蒗MS5.5地震同震位移场

    Figure  10.  Coseismic displacement field of Ninglang MS5.5 earthquake

    表  1  钻孔主要地层

    Table  1.   Main stratum of borehone

    地层名称地层特征
    坡积层褐黄、褐红、褐灰色,结构松散,黏性土为主,山麓斜坡地带含碎石、砾石,表层有植物根系
    淤泥层深灰色,软塑,湿。土质软,表现为高压缩性、强黏着感,层中含少量有机质,偶夹粉土薄层,为沼泽沉积相
    泥炭土灰黑色,可塑,湿。土层中含大量有机质、腐殖质,质轻,易压缩,韧性差,夹灰、黄灰色可塑黏土层,为湖积沉积相
    碎石土层褐黄色,中密,饱和。砾石含量约35%,分布不均匀,大量黏性土和角砾充填,为残积相
    玄武岩深灰色,岩芯裂隙发育,岩质坚硬,钻进困难。岩芯表现为破碎,多呈碎石、碎块状,上部局部地带有全风化残积层分布
    下载: 导出CSV

    表  2  不同机构给出的震源机制解得到的中心震源机制解标准差

    Table  2.   Standard deviation of central focal mechanism solution obtained from focal mechanism solutions given by different mechanisms

    序号震源机制解走向、倾角
    和滑动角/(°)
    机构或作者作为初始解得到的中心
    震源机制解走向、倾角
    和滑动角/(°)
    作为初始解得到的
    标准差S/(°)
    震源机制解与其他机构震源机制解的最小空间旋转角/(°)
    1183,41,−50亥姆霍兹波茨坦中心(GFZ)198.7,64.9,−26.230.330.3
    2198,63,−37郭祥云等198.7,64.9,−26.330.310.6
    3206,71,−9韩立波等198.7,64.9,−26.330.317.1
    4177,69,−71中国地震台网中心198.7,66.0,−153.795.341.3
    5196,55,−30雷兴林198.7,64.9,−26.330.310.5
    6210,73,21中国地震科学实验场
    大理中心
    198.7,64.9,−26.730.345.1
    7293,70,170赵韬300.5,66.3,−152.530.335.5
    下载: 导出CSV
  • 常祖峰, 杨盛用, 周青云等, 2013.2012年6月24日宁蒗-盐源MS5.7地震发震构造刍议. 地震地质, 35(1): 37—49

    Chang Z. F. , Yang S. Y. , Zhou Q. Y. , et al. , 2013. Discussion of seismogenic structure of the June 24, 2012 Ninglang-Yanyuan MS5.7 earthquake. Seismology and Geology, 35(1): 37—49. (in Chinese)
    常祖峰, 张艳凤, 李鉴林等, 2014. 德钦—中甸—大具断裂晚第四纪活动的地质与地貌表现. 地震研究, 37(1): 46—52

    Chang Z. F. , Zhang Y. F. , Li J. L. , et al. , 2014. The geological and geomorphic characteristic of Late Quaternary activity of the Deqin-Zhongdian-Daju fault. Journal of Seismological Research, 37(1): 46—52. (in Chinese)
    程佳, 徐锡伟, 甘卫军等, 2012. 青藏高原东南缘地震活动与地壳运动所反映的块体特征及其动力来源. 地球物理学报, 55(4): 1198—1212

    Cheng J. , Xu X. W. , Gan W. J. , et al. , 2012. Block model and dynamic implication from the earthquake activities and crustal motion in the southeastern margin of Tibetan Plateau. Chinese Journal of Geophysics, 55(4): 1198—1212. (in Chinese)
    邓起东, 张培震, 冉勇康等, 2002. 中国活动构造基本特征. 中国科学(D辑), 32(12): 1021—1030.

    Deng Q. D. , Zhang P. Z. , Ran Y. K. , et al. , 2003. Basic characteristics of active tectonics of China. Science in China Series D: Earth Sciences, 46(4): 356—372.
    杜方, 吴江, 2008. 四川盐源—云南宁蒗间5.8级地震发震特征. 四川地震, (3): 11—19

    Du F. , Wu J. , 2008. Character of Yuanyan M5.8 earthquake on 24 May 2001. Earthquake Research in Sichuan, (3): 11—19. (in Chinese)
    高健, 石昱祯, 廖先远等, 2010. 四川省盐源县泸沽湖地区地热开发的可行性研究. 四川地质学报, 30(3): 291—294

    Gao J. , Shi Y. Z. , Liao X. Y. , et al. , 2010. Feasibility study of exploitation of geothermal resource in the Lugu Lake region, Yanyuan, Sichuan. Acta Geologica Sichuan, 30(3): 291—294. (in Chinese)
    何玉林, 王云基, 杜国光等, 2002.2001年5月24日四川盐源5.8级地震灾害及损失评估. 四川地震, (2): 23—27

    He Y. L. , Wang Y. J. , Du G. G. , et al. , 2002. General description of the M5.8 earthquake occurring in Yanyuan of Sichuan Province on 24 May 2001. Earthquake Research in Sichuan, (2): 23—27. (in Chinese)
    胡朝忠, 杨攀新, 熊仁伟, 2012.2012年6月24日宁蒗—盐源5.7级地震的发震构造浅析. 地震, 32(4): 140—147

    Hu C. Z. , Yang P. X. , Xiong R. W. , 2012. Brief Seismotectonic analysis of the June 24, 2012 Ninglang-Yanyuan MS5.7 earthquake. Earthquake, 32(4): 140—147. (in Chinese)
    阚荣举, 张四昌, 晏凤桐等, 1977. 我国西南地区现代构造应力场与现代构造活动特征的探讨. 地球物理学报, 20(2): 96—109

    Kan R. J. , Zhang S. C. , Yan F. T. , et al. , 1977. Present tectonic stress field and its relation to the characteristics of recent tectonic activity in southwestern China. Chinese Journal of Geophysics, 20(2): 96—109. (in Chinese)
    李东雨, 陈立春, 梁明剑等, 2017. 鲜水河断裂带乾宁段古地震事件与大震复发行为. 地震地质, 39(4): 623—643

    Li D. Y. , Chen L. C. , Liang M. J. , et al. , 2017. Holocene palaeoseismologic record and rupture behavior of large earthquakes on the Xianshuihe fault. Seismology and Geology, 39(4): 623—643. (in Chinese)
    李玶, 1993. 鲜水河-小江断裂带. 北京: 地震出版社.

    Li P. , 1993. Xianshui River-Xiaojiang fracture zone. Beijing: Seismological Press. (in Chinese)
    李世成, 林国良, 崔建文等, 2013. 宁蒗-盐源5.7级地震数字强震动台网记录及初步分析. 地震研究, 36(4): 502—507

    Li S. C. , Lin G. L. , Cui J. W. , et al. , 2013. Strong motion records and their preliminary analyze of Ninglang-Yanyuan M5.7 earthquake in digital strong motion network. Journal of Seismological Research, 36(4): 502—507. (in Chinese)
    刘晓霞, 邵志刚, 2020. 丽江-小金河断裂带现今断层运动特征. 地球物理学报, 63(3): 1117—1126

    Liu X. X. , Shao Z. G. , 2020. Current fault movement characteristics in the Lijiang-Xiaojinhe fault zone. Chinese Journal Geophysics, 63(3): 1117—1126. (in Chinese)
    钱洪, 艾伦 C. R. , 罗灼礼等, 1988. 全新世以来鲜水河断裂的活动特征. 中国地震, 4(2): 9—18

    Qian H. , Allen C. R. , Luo Z. L. , et al. , 1988. The active characteristics of Xianshui fault in Holocene. Earthquake Research in China, 4(2): 9—18. (in Chinese)
    王光明, 朱良保, 苏有锦等, 2015.2012年6月24日宁蒗-盐源MS5.7地震的精确定位. 地震学报, 37(5): 733—746

    Wang G. M. , Zhu L. B. , Su Y. J. , et al. , 2015. Accurate location of the June 24, 2012 Ninglang-Yanyuan MS5.7 earthquake. Acta Seismologica Sinica, 37(5): 733—746. (in Chinese)
    王杰, 杨建强, 卢永坤等, 2022.2022年云南宁蒗MS5.5地震房屋震害特征与烈度评定. 地震地磁观测与研究, 43(2): 160—169

    Wang J. , Yang J. Q. , Lu Y. K. , et al. , 2022. Building seismic damage characteristics and intensity evaluation of Yunnan Ninglang MS5.5 earthquake in 2022. Seismological and Geomagnetic Observation and Research, 43(2): 160—169. (in Chinese)
    王庆良, 崔笃信, 王文萍等, 2008. 川西地区现今垂直地壳运动研究. 中国科学 D辑: 地球科学, 38(5): 598—610.
    王阎昭, 王恩宁, 沈正康等, 2008. 基于GPS资料约束反演川滇地区主要断裂现今活动速率. 中国科学 D辑: 地球科学, 38(5): 582—597.

    Wang Y. Z. , Wang E. N. , Shen Z. K. , et al. , 2008. GPS-constrained inversion of present-day slip rates along major faults of the Sichuan-Yunnan region, China. Science in China Series D: Earth Sciences, 51(9): 1267—1283.
    向宏发, 徐锡伟, 虢顺民等, 2002. 丽江-小金河断裂第四纪以来的左旋逆推运动及其构造地质意义——陆内活动地块横向构造的屏蔽作用. 地震地质, 24(2): 188—198

    Xiang H. F. , Xu X. W. , Guo S. M. , et al. , 2002. Sinistral thrusting along the Lijiang-Xiaojinhe fault since Quaternary and its geologic-tectonic significance——shielding effect of transverse structure of intracontinental active block. Seismology and Geology, 24(2): 188—198. (in Chinese)
    徐俊祖, 张方浩, 张原硕等, 2022. 宁蒗县1988年MS5.5、2012年MS5.7及2022年MS5.5地震震害特征对比分析. 地震地磁观测与研究, 43(2): 170—179 doi: 10.3969/j.issn.1003-3246.2022.02.022

    Xu J. Z. , Zhang F. H. , Zhang Y. S. , et al. , 2022. Comparative analysis of earthquake damage characteristics of Ninglang MS5.5 earthquake in 1988, MS5.7 earthquake in 2012 and MS5.5 earthquake in 2022. Seismological and Geomagnetic Observation and Research, 43(2): 170—179. (in Chinese) doi: 10.3969/j.issn.1003-3246.2022.02.022
    徐锡伟, 闻学泽, 郑荣章等, 2003. 川滇地区活动块体最新构造变动样式及其动力来源. 中国科学(D辑), 33(S1): 151—162.

    Xu X. W. , Wen X. Z. , Zheng R. Z. , et al. , 2003. Pattern of latest tectonic motion and its dynamics for active blocks in Sichuan-Yunnan region, China. Science in China Series D: Earth Sciences, 46(2): 210—226.
    《盐源-宁蒗地震》编辑组, 1988. 一九七六年盐源-宁蒗地震. 北京: 地震出版社, 24—27.
    云南地质局区域地质调查队, 1980. 区域地质调查报告1: 20万, 永宁幅.

    Regional Geological Survey Team of Yunnan Geological Bureau, 1980. Regional geological survey report 1: 200000, Yongning Range. (in Chinese)
    曾祥方, 韩立波, 倪四道等, 2013.2012年6月24日宁蒗-盐源MS5.7地震震源参数研究. 地震, 33(4): 196—206

    Zeng X. F. , Han L. B. , Ni S. D. , et al. , 2013. Inversion for source parameters of the June 24, 2012 Ninglang-Yanyuan MS5.7 earthquake. Earthquake, 33(4): 196—206. (in Chinese)
    Allen C. R. , Luo Z. L. , Qian H. , et al. , 1991. Field study of a highly active fault zone: the Xianshuihe fault of southwestern China. GSA Bulletin, 103(9): 1178—1199. doi: 10.1130/0016-7606(1991)103<1178:FSOAHA>2.3.CO;2
    Liang S. M. , Gan W. J. , Shen C. Z. , et al. , 2013. Three-dimensional velocity field of present-day crustal motion of the Tibetan Plateau derived from GPS measurements. Journal of Geophysical Research: Solid Earth, 118(10): 5722—5732. doi: 10.1002/2013JB010503
    Okada Y. , 1992. Internal deformation due to shear and tensile faults in a half-space. Bulletin of the Seismological Society of America, 82(2): 1018—1040. doi: 10.1785/BSSA0820021018
    Rui X. , Stamps D. S. , 2016. Present-day kinematics of the eastern Tibetan Plateau and Sichuan Basin: implications for lower crustal rheology. Journal of Geophysical Research: Solid Earth, 121(5): 3846—3866. doi: 10.1002/2016JB012839
    Shen Z. K. , Lü J. N. , Wang M. , et al. , 2005. Contemporary crustal deformation around the southeast borderland of the Tibetan Plateau. Journal of Geophysical Research: Solid Earth, 110(B11): B11409.
    Wang E. , Burchfiel B. C. , 1997. Interpretation of Cenozoic tectonics in the right-lateral accommodation zone between the Ailao Shan shear zone and the eastern Himalayan syntaxis. International Geology Review, 39(3): 191—219. doi: 10.1080/00206819709465267
    Wells D. L. , Coppersmith K. J. , 1994. New empirical relationships among magnitude, rupture length, rupture width, rupture area, and surface displacement. Bulletin of the Seismological Society of America, 84(4): 974—1002.
    Zhang P. Z. , Shen Z. K. , Wang M. , et al. , 2004. Continuous deformation of the Tibetan Plateau from global positioning system data. Geology, 32(9): 809—812. doi: 10.1130/G20554.1
